For a personalised quote, add to cart. Then in the checkout choose create a quote.

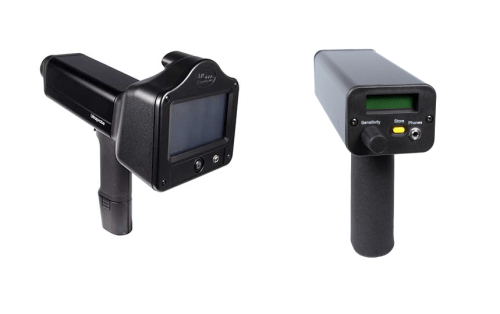

An inspection tool package that includes the Ultraprobe 15,000 and the Ultraprobe 9000ATEX. Monitor general work areas using the Ultraprobe 15,000 and the use the Ultraprobe 9000ATEX for hazardous areas.
-The Ultraprobe 15,000 for in-field diagnostics, performs on-board spectral analysis, record the sounds of test equipment, measure and record temperature, take photographs with flash, store and manage data.
-The Ultraprobe 9000ATEX is sensitive enough to detect 0.127 mm diameter leak at 0.34 bar at a distance of 15 meters.
The Ultraprobe 9000 housing with Digital LCD Display and LED backlight FM Rated Intrinsically Safe: Class I, Division 1, Groups C & D.
With the Ultraprobe 15,000 Plus IS Package youll be able to monitor equipment performance, improve asset availability and reduce energy waste throughout your plant, including hazardous areas that require intrinsically safe ratings.
Use the Ultraprobe 9000ATEX as a screening tool to test the hazardous areas and the Ultraprobe 15,000 for the rest of the plant. By testing with the 9000ATEX in rated areas, anomalies can be identified early enough so that appropriate decisions can be made as to next steps or corrective actions.
Ultraprobe 15,000 Touch Digital Pistol Unit
This advanced ultrasonic instrument can perform on-board spectral analysis, record the sounds of test equipment, measure and record temperature, take photographs with flash, store and manage data. The Ultraprobe 15,000 utilizes touch screen technology. This unique feature uses Icons to easily control and maneuver around any of the Ultraprobes display screens. Touching the screen allows you to be able to view decibel level, temperature, control sensitivity, change frequency, view an FFT and record sounds and images.
Additional accessories:
- Tri-Sonic Scanning Module for locating airborne ultrasound (ATEX Rated)
- Stethoscope Module (contact type) for monitoring internally generated ultrasounds (ATEX Rated)
- Extension rod set to increase stethoscope contact range to 31 inches
- Warble Tone Generator
- Deluxe Noise Isolating Headset for use with hardhat
- LRM Long Range Module to increase detection range
- Spectralyzer Sound Analysis Software / Ultratrend Data Management Software
- Rubber Focusing Cone for narrowing reception field & for shielding ambient ultrasounds
- 2x Battery Rechargers with Spare Battery & External Recharging POD for Ultraprobe 15,000 unit
- RAS-MT Magnetic Sensor with BNC connection readable with the Ram Module
- RAM Adaptor enabling the Ultraprobe 15,000 to read RAS sensors
- SD Card to USB Reader (allows reading of SD to PC via USB port)
- Zero Halliburton Case
Specifications
- Construction: Hand-held pistol type made with coated aluminum and ABS plastic
- Circuitry: Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion
- Frequency: 20 kHz to 100 kHz (tunable in 1 kHz increments)
- Response Time: less than 10 ms
- Display: QVGA Touch Screen, IR, Laser Pointer, Camera, Spectrum Ana
- Sound Recording: WAV File Format
- IR Temperature: -20 to 500 C (-4 to 932 F)
- Camera: 2.0 Mega Pixel
- Memory: 400 storage locations
- Battery: Lithium NiMH Rechargeable
- Operating Temperature: 0 to 50 C (32 to 122 F)
- Output(s): Calibrated heterodyned output, decibel (dB), frequency, SD card
- Probes: Trisonic Scanning Module and Stethoscope Module, Long Range Module and RAS-MT
- Headset: Deluxe noise attenuating headphones for hard hat use
- Indicators: dB, Frequency, Battery Status and 16 Segment Bar Graph
- Threshold: 1 x 10-2 std: cc/sec to 1 x 10-3 std. cc/sec
- Dimensions, Complete kit in Zero Halliburton aluminum carrying case:
55 x 47 x 20 cm (21.5 x 18.5 x 8).
- Weight: Pistol Unit: 2,35 lbs (1.1 kg)/Complete carrying case: 19 lbs. (8.6 kg)
- Warranty: 1 year parts/labor standard. 5 years with completed warranty registration card
- Display Modes: dB (main), IR, ABCD, Spectrum and Application Specific, Spectrum Analyzer (modes): Spectrum, Time Series, Dual Specification
- Weight (Complete carrying case): 6.4 kg (14 lbs)
- Warranty: 1-year parts/labor standard, 5 years with completed warranty registration card.
- Display Modes: Real Time, Snap Shot, Peak Hold and Storage Display depends on leak configuration
