The Ultraprobe 10,000 brings ultrasound inspection technology to a whole new level. With this one system, inspectors can perform condition analysis, record sounds, store and manage data.
Applications:
- Setup bearing data collection routes, analyze & create lubrication routes
- Inspect electrical systems for faults, analyze on the spot & report
- Inspect for faulty steam traps
- Find your leaks & report cost per leak with DMS reporting
Why Choose this instrument?
- Enables all the possibilities to inspect, report & analyze with ultrasound
- Accurate & repeatable digital data
- Adjustable Frequency from 20 kHz to 100 kHz
- On-board sound recording
- Ideally for troubleshooting, analyses & data collection programs
- Comes with license free data management (DMS) & Spectrum analysis software to manage & report asset condition
On board data logging utilizing Ultratrend DMS providing:
- Ability to manage routes
- Upload & download via USB connection
- Multiple data views
- History tables/spread sheets
- Trend charts
- Export database & report documents to Excel
On board sound recording utilizing Spectralyzer software providing:
- Ability to analyze sound files in FFT & Time series
- Create analysis reports
- Overlay historical recordings for comparisons
- Diagnose electrical faults
- Bearing fault calculator for defect confirmation
The Ultraprobe 10,000 simplifies sound recording with user-friendly Spin and Click technology
The Ultraprobe 10,000 features onboard Sound Recording with a push of a button. Youll record a sound sample directly into the instrument and link it to one of 400 record files stored in the Ultraprobe:
- Specialized application screens
- Adjustable on/off features
- Connection to external devices
- Flexible reporting options
The Ultraprobe 10,000 kit includes:

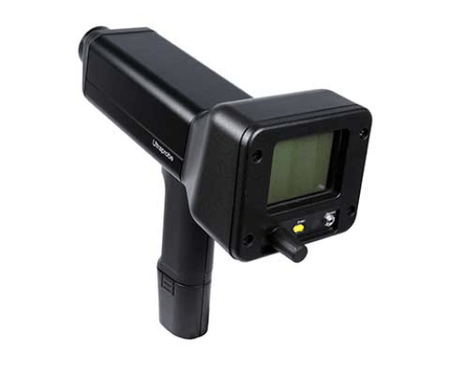

- ULTRAPROBE pistol grip housing. It consists of the display panel, spin & click controls, the headphone jack, SD card and module receptacle, on-board data logging & battery.
- SD card reader
- Deluxe industrial noise reducing headset
- Battery recharge kit for main housing and warble tone generator
- Spare battery
- Zero Halliburton aluminum carrying case
- Warble tone generator with amplitude selection switch for use in tone test method
- Remote access module (RAM) to connect remote sensors
- Magnetic mount remote sensor (RAS-MT) with cable for consistency in testing bearings & oil cooled transformers
- Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
- Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
- Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
- Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
- Long range module with laser pointer (LRML-10) for more accurate & extended range of detection for leak detection or electrical emissions
- Belt holster for easy carrying
- Comprehensive instruction manual
- License & update free included DMS software!
- License & update free included Spectralyzer software
