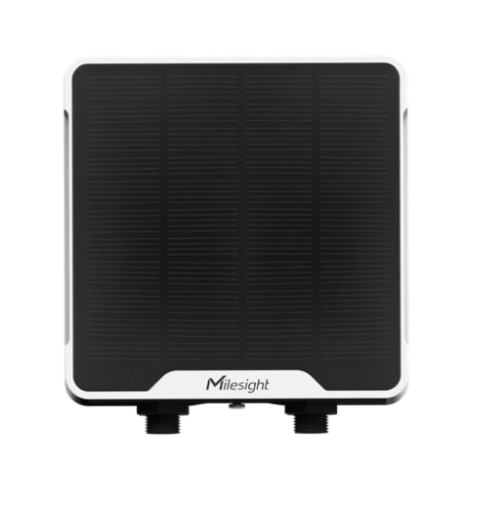

UC511 - Solenoid Valve Controller (Rechargeable)
ORDER ME IN
Order Me In, Once ordered this item will likely dispatch before the 01st of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The UC511 is a LoRaWAN controller designed for DC latching solenoids for water flow monitoring. Compatible with standard solenoid valves.
- Appropriate to use for controlling open/close events for solenoid valves using mobile apps thanks to its built it pulse and solenoid interfaces.
- Built with solar panel, IP67 housing and M12 connectors for harsh environments.
- Transmission distance of 15 km.
Regular price
$279.40 AUD
+ GST
$307.34 AUD Inc. GST
$307.34 AUD Inc. GST
Note: Requires a Gateway to utilise the IoT Cloud software
The UC511 is a LoRaWAN controller designed for DC latching solenoids for water flow monitoring. Compatible with standard solenoid valves.
This version includes a solar panel, IP67 casing and M12 connectors, perfect for prolonged deployment in harsh environments. It is compatible with industry standard LoRaWAN gateways with a range of up to 15 km in rural areas and 2 km in urban areas.
The UC500 LoRaWAN controller also has built-in multiple industrial interfaces to connect all types of sensors, meters and other appliances that includes RS232, RS485, GPIO, and Analog Input.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
UC511-DI-915M Features
- Compatible with standard DC latching solenoids
- Can be used for OPEN/CLOSE control using mobile apps
- Built with two pulse sensors for water flow monitoring
- Solar powered
- Transmission distance up to 15 km with line of sight
- Compliant with standard LoRaWAN gateways and network serve
- Waterproof design including IP67 case and M12 connectors
- Quick wireless configuration via NFC
- Time and flow control via Milesight IoT Cloud
Specifications
"Frequency "
|
CN470/RU864/IN865/EU868/AU915/US915/KR920/AS923
|
Power Supply
|
Rechargeable, 4900 mAh battery with solar panel, 1 month battery life without charging (Class C)
|
Solenoid lnterface
|
2x 2-Wire 12 VDC Latching Solenoid
|
Dimension
|
120.1 x 120.1 x 55.4 mm (4.73 x 4.73 x 2.18 in)
|
Power Supply
|
Rechargeable; 5100 mAh battery with solar panel
|
Ingress Protection |
lP67
|
Operating Temperature |
-20 to 60 C
|
