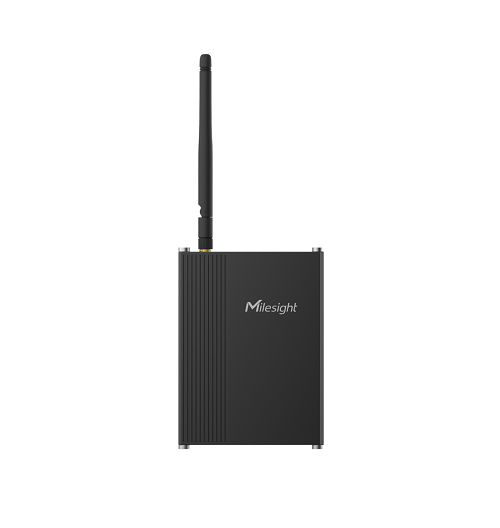

UC300 - IoT Controller with 3G/4G- UC300-L05AU

ORDER ME IN
Product code: UC300-L05AU

Order Me In, Once ordered this item will likely dispatch before the 26th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The UC300-L05AU is an IoT controller used for remote control and data acquisition from multiple sensors via 3G/4G network.

  • Contains different I/O interfaces such as analog inputs, digital inputs, relay outputs, serial ports and so on, which support remote device data transmission.
  • Specifically built for autonomous operation.
  • With a rich industrial interface that includes 6x Analog Inputs, 4x Digital Inputs, 2x Digital Outputs and 1x RS232 + 1x RS485.

Read more

$339.20 AUD + GST
 $373.12 AUD Inc. GST
Note: Requires a Gateway to utilise the IoT Cloud software
The UC300-L05AU is an IoT controller used for remote control and data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, relay outputs, serial ports and so on, which support remote device data transmission and control via 3G/4G networks or SMS. Besides, theUC300-L05AUsupports multiple trigger conditions and actions which works autonomously even when the network drops.
The UC300 is capable of integrating 6x Analog Inputs, 4x Digital Inputs, 2x Digital Outputs and 1x RS232 + 1x RS485
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
UC300-L05AU Features
- Users are able to set up 16 commands based on custom trigger conditions & actions to realize intelligent task like timing data collection.
- Milesight UC300 IoT controller can execute the commands autonomously even when the network is unavailable.
- Support TCP/UDP/MQTT protocol, UC300 IoT controller is compatible with multiple Cloud platforms such as AWS (for cellular version only) and Milesight IoT Cloud.
- Store, manage and analyze all your data with a few clicks using the IoT Cloud

Specifications

Technology
3/4 G
Cellular
TCP/UDP/MQTT/AWS/ONENet/Milesight IoT Cloud/SMS Application Mode
Interface Type
3.5 mm Terminal Block
GPIO
4x DI + 2x DO
Serial Port
1x RS232 + 1x RS485
Analog Input
2x 4-20 mA, 2x 0-10 V, 2x PT100 RTD Input
Configuration Port
1x Type-C
LED Indicators
1x System, 1x ACT
Built-in
Watchdog, Timer
Operating Temperature
-20 to 60 C (-4 to +140 F)
Dimensions
93 x 70 x 22 mm (3.66 x 2.76 x 0.87 in)
Installation
Desktop, Wall Mounting, DIN Rail Mounting
