U7844G IoT Wireless Four channel Datalogger
Backorder Now, once ordered your item will dispatch before the 23rd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

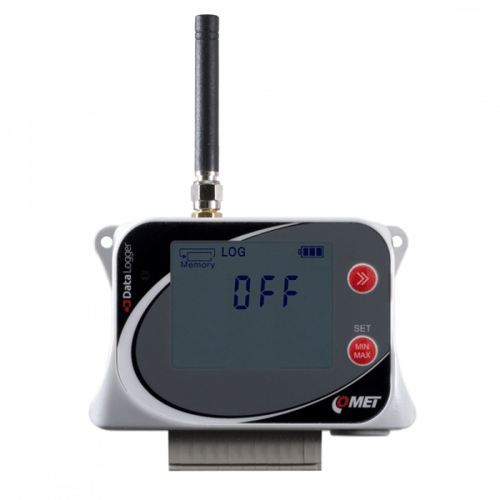

The U7844G is a IoT Wireless Four channel Datalogger with pulse and two-state inputs, with built-in 4G modem.
- - For four binary inputs or from two pulse and two binary inputs.
- - Measured values can be sent to the Comet Cloud for storage and analysis.
- - SMS and JSON messages can be also be sent via 4G data connection when measured readings exceed set limits. Also includes audio and visual alarms.
- - Includes Traceable calibration certificate based on EN ISO/IEC 17025 standard
Regular price
$1,544.43 AUD
+ GST
$1,698.88 AUD Inc. GST
$1,698.88 AUD Inc. GST
Note: SIM card is not included, sold separately
The U7844G is a GSM datalogger is designed to record from four binary inputs or from two pulse and two binary inputs. In case of exceeded set limits, SMS and JSON messages can be sent via 4G data connection. Measured values can be sent to the internet storage COMET Cloud, which is a complete monitoring, alarm and analysis system.
It is also possible to set the regular sending of JSON messages to COMET Database, the sending interval is adjustable. Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper. The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.
GSM datalogger inputs can be set up for four binary inputs or two binary inputs and two pulse counters.
The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
Specifications
- Parameters of the voltage contact: L level input voltage:< 0,8 V(*); H level input voltage:> 2 V;
- Minimum voltage applicable: 0 V; Maximum voltage applicable:+30 V DC
- Parameters of the voltage-free contact: Contact resistance in switched-on state:< 10 kOhm;
Contact resistance in the switched-off state:> 2 MOhm; Contact voltage in the switched-off state:ca 3 V; Minimum state duration necessary for latching the state:1s
- Counter Parameters Range: 24 bits (16 777 215), possibility of letting the counter overflow
- Counter Parameters Range: 24 bits (16 777 215), possibility of letting the counter overflow
- Maximum pulse frequency configured for voltage input: max. 5kHz; configured for a voltage-free or open-collector transistor: max. 200Hz
- LTE: Cat 1 LTE FDD/GSM/GPRS/EDGE
- LTE: Cat 1 LTE FDD/GSM/GPRS/EDGE
- Supported network types: GSM/GPRS/EDGE 900/1800 MHz/LTE FDD B1/B3/B5/B7/B8/B20
- Operating temperature: -20 to +60 C
- Channels: 4x binary input nebo 2x binary input a 2x counter
- Memory: 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
- Recording interval to the internal memory: adjustable from 1 second to 24 hours
- Recording interval to the COMET Clou: from 5 minutes
- Interval for measuring and evaluating alarms: adjustable 1 s, 10 s, 1 min
- Recording mode noncyclic data logging stops after filling the memory cyclic after filling memory oldest data is overwritten by new
- Real time clock: year, leap year, month, day, hour, minute, second
- Power rechargeable: Li-Ion battery A8200, 3.6V/5200mAh
- Protection class: IP67 electronics; IP30 sensors
- Dimensions: 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
- Weight (including batteries): approx. 260 g
- Warranty: 3 years
Includes:
- U7844G
- Instruction Manual
- Rechargeable Battery
- Power Supply
- USB-C Cable
- FREE Analytical Software COMET Vision
- COMET Cloud for 3 Months
