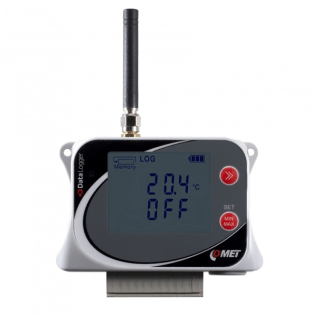

U0843G IoT Wireless Temperature Datalogger
ORDER ME IN
Order Me In, Once ordered this item will likely dispatch before the 28th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The U0843G is an IoT Wireless Temperature Datalogger with two external probes connected to the terminal board, with two two-state inputs, built-in 4G modem.
- - Measured values can be sent to the Comet Cloud for storage and analysis.
- - SMS and JSON messages can be also be sent via 4G data connection when measured readings exceed set limits. Also includes audio and visual alarms.
- - Includes Traceable calibration certificate based on EN ISO/IEC 17025 standard.
Regular price
$1,544.43 AUD
+ GST
$1,698.88 AUD Inc. GST
$1,698.88 AUD Inc. GST
Note: SIM card is not included
The U0843G GSM Datalogger is designed to record from two external temperature probes and two two-state inputs. In case of exceeded set limits, SMS and JSON messages can be sent via 4G data connection. Measured values can be sent to the internet storage COMET Cloud, which is a complete monitoring, alarm and analysis system.
It is also possible to set the regular sending of JSON messages to COMET Database, the sending interval is adjustable. Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper. The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.
GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
Specifications
- Measuring range: -200 to +260 C
- Accuracy: +/- 0.2 C; +/- 0,2 % of the measurement value in a range of +100 to +260 C
- Resolution: 0.1 C
- Response time: t90 of temperature measurement (temperature step 20 C, air flow approximately 1m/s) according to the connected probe
- Parameters of the voltage contact: L level input voltage:< 0,4 V(*); H level input voltage:> 2 V;
- Parameters of the voltage contact: L level input voltage:< 0,4 V(*); H level input voltage:> 2 V;
- Minimum voltage applicable: 0 V;
- Maximum voltage applicable: +30 V DC
- Parameters of the voltage-free contact Contact resistance in switched-on state:< 10 kOhm;
- Contact resistance in the switched-off state:> 300 kOhm; Contact voltage in the switched-off state:ca 3 V; Minimum state duration necessary for latching the state: 1s
- Supported network types: GSM/GPRS/EDGE 900/1800 MHz/LTE FDD B1/B3/B5/B7/B8/B20
- Supported network types: GSM/GPRS/EDGE 900/1800 MHz/LTE FDD B1/B3/B5/B7/B8/B20
- Operating temperature: -20 to +60 C
- Channels: 4x external probes
- Memory: 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
- Recording interval to the internal memory: adjustable from 1 second to 24 hours
- Recording interval to the COMET Cloud: from 5 minutes
- Interval for measuring and evaluating alarms: adjustable 1 s, 10 s, 1 min
- Recording mode: noncyclic data logging stops after filling the memory cyclic after filling memory oldest data is overwritten by new
- Real time clock: year, leap year, month, day, hour, minute, second
- Power rechargeable: Li-Ion battery A8200, 3.6V/5200mAh
- Protection class: IP67
- Dimensions: 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
- Weight (including batteries): approx. 270 g
- Warranty: 3 years
Includes:
- U0843G
- Instruction Manual
- Traceable Calibration Certificate
- Rechargeable Battery
- Power Supply
- USB-C Cable
- FREE Analytical Software COMET Vision
- COMET Cloud for 3 Months
