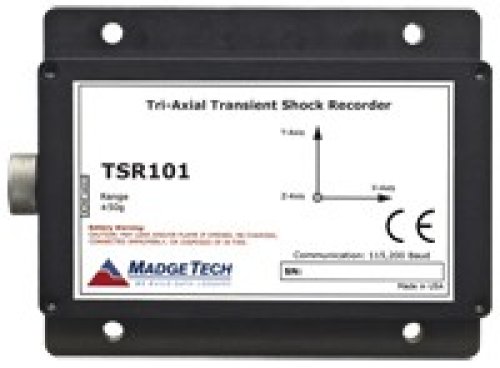

Tri-axial Shock Recorder (5g) - TSR101-5
Unfortunately, the TSR101-5 has been discontinued and has been replaced by the ULTRASHOCK-100.
The TSR101 is valuable in characterizing environments such as packaging & fragility assessment (drop testing), break & crash testing, and shipping validation. This is an all-in-one compact, portable, easy to use device that will measure and record data for approximately 349,000 measurements per axis. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged.
The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The TSR101 makes data retrieval quick and easy. Simply plug it into an empty USB port and our user-friendly software does the rest.
SHOCK
Shock Acceleration Range |
5g
|
|---|---|
Shock Resolution |
0.01
|
Shock Calibrated Accuracy |
0.01
|
GENERAL
Memory |
349,000/axis
|
|---|---|
Reading Rate |
15 options from 0.976ms/1,024Hz to 1 second, selectable in software
|
Baud Rate |
115,200
|
Channels |
Shock (3 axes)
|
Battery Life |
7 days typical with lithium battery
|
Material |
Anodized aluminum
|
Dimensions |
3.5" x 4.4" x 1.0" (89mm x 112mm x 26mm)
|
Operating Environment |
-20~+60C, 0~95%RH non-condensing
|
Required Interface Package |
IFC200
|
Approvals |
CE
|
