True RMS Thermal Multimeter

ORDER ME IN
Product code: MT2005

Order Me In, Once ordered this item will likely dispatch before the 02nd of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Professional True RMS industrial digital multimeter with thermal and infrared imager.

-With 80 x 80 Thermal Imager, and TFT color LCD display.

-Infrared Thermal Imager offers you non invasive measurements of potential hot spots.

-With Bluetooth and IP65 protection.

Read more

$1,815.00 AUD + GST
 $1,996.50 AUD Inc. GST

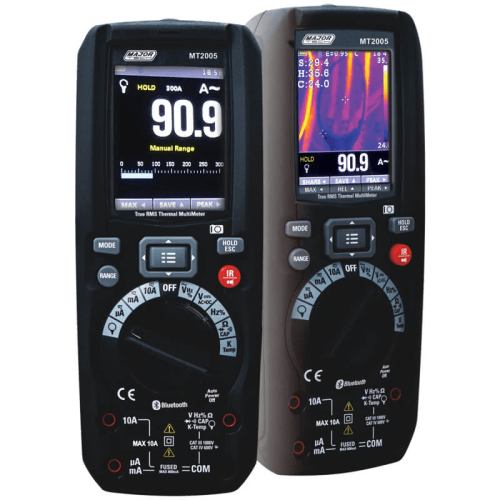

The MT2005 Professional True RMS Industrial Digital Multimeter with built-in 80 x 80 Thermal Imager, and TFT color LCD display, provides fast A/D converting sampling time, high accuracy. It is a fast and easy solution to find and solve problems with production equipment, providing Bluetooth technology BLE. It is a safe instrument with double molded plastic housing and has a IP65 waterproof rating.
Built-in Infrared Thermal Imager offers you non invasive measurements of potential hot spots. These images can be transferred via Bluetooth to a Smartphone for analysis. Simply turn on the bluetooth of the smartphone. Press the Thermview+ icon and enter into the home interface, then press the Connect Device icon and the bluetooth device name will appear. Touch the device name listed in Bluetooth devices list to connect to the device.
Features:
- 6000 count 2.8 inch TFT Colour LCD display
- Built-in Thermal Imager with Max/Min
- Temperature Range -20 to 260 C
- 50Hz fast Thermal Image frame rate
- DC Voltage
- AC, AC+DC TRMS Voltage
- DC Current
- AC, AC+DC TRMS Current
- Resistance and Continuity Test
- Diode Test
- Capacity
- Frequency
- Duty Cycle
- Temperature with K-type probe
- Flexible Coil Current
- Bluetooth 4.0
- CAT IV 600V and CAT III 1000V

Specifications

- DC Voltage: 1000V
- DC Voltage resolution: 0.1mV
- DC Voltage accuracy: +/- (0.09%+5)
- AC Voltage: 1000V
- AC Voltage resolution: 0.1mV
- AC voltage accuracy: +/- (0.8%+5)
- AC plus DC TRMS voltage: 1000V
- AC plus DC voltage resolution: 0.001mV
- AC plus DC voltage accuracy: +/- (2.4%+20)
- DC Current: 10A
- DC Current resolution: 0.1uA
- DC Current accuracy: +/- (0.9+5)
- AC Current: 10A
- AC current resolution: 0.1uA
- AC Current accuracy: +/- (1.2% + 5)
- Duty Cycle: 5.0% to 95.0%
- Duty Cycle resolution: 0.10%
- Duty Cycle accuracy: +/- (1.2% +2)
- Resistance: 60M
- Resistance resolution: 0.1
- Resistance accuracy: +/- (0.5% + 5)
- Frequency: 100MHz
- Frequency resolution: 0.01Hz
- Frequency accuracy: +/- (0.09% + 5)
- Capacitance: 6000uF
- Capacitance resolution: 0.01nF
- Capacitance accuracy: +/- (1.2% + 8)
- Temperature: -40 to 600 C
- Temperature resolution: 0.1 C
- Temperature accuracy: +/- (1.5% +3)
- Continuity: Yes
- Diode Test: Yes
- True RMS Measurements: AC, AC plus DC
- AC Bandwidth: 50Hz to 100KHz
- Display: Colour TFT, 6000 dots with bar graph
- Bar graph: Yes
- Bluetooth: BLE 4.0
- Records events and Trends: Yes
- Non-Contact Voltage (NCV): Yes
- Over-range indication: Yes
- Data logging: Yes
- Input Impedance: 10M VDC & 10M VAC
- Low Pass filter: Yes
- Min Max: Yes
- Peak hold: 500us
- Data Hold: Yes
- Back Light: Yes
- Field of View: 21 x 21 degrees
- Spatial resolution (IFOV): 4.53mrad
- Thermal sensitivity/NETD: less than 0.1 C at +30 C/100mK
- Image Range: 50Hz
- Focus mode: Focus Free
- Zoom: 1 x 32 x continuous, digital zoom
- Focal Length: 7.5mm
- IR Resolution: 80 x 80 pixels
- Colour Palletes: Iron, rainbow, grey, grey inverted
- Enclosure: Double moulded waterproof IP67
- Power Supply: 7.4V rechargeable li-ion, 2300mAh
- Weight: 540g
- Dimensions: 175 x 85 x 55m
