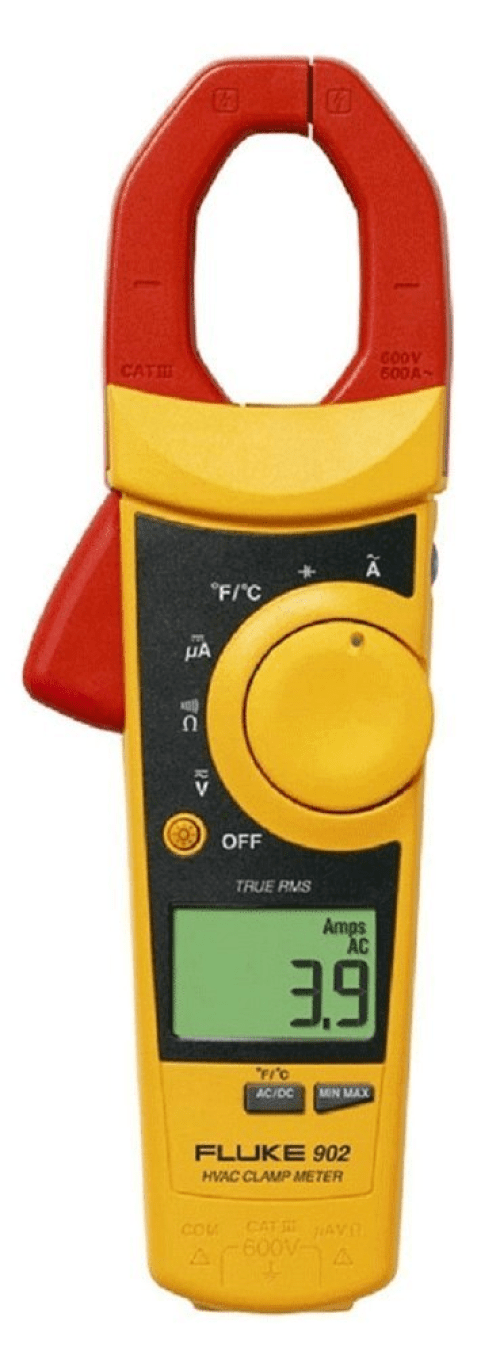

TRUE RMS HVAC CLAMP METER - IC-FLUKE-902

ORDER ME IN
Product code: IC-FLUKE-902

Backorder Now, once ordered your item will dispatch before the 22nd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Heating, ventilation, air conditioning (HVAC) technicians require a service tool that can consistently keep up with their demands. The Fluke 902 expands the existing line of quality Fluke clamp meters by delivering the features necessary to diagnose and repair HVAC systems. Combined with True RMS technology and a CAT III 600 V rating, the Fluke 902 helps technicians do their jobs safely and accurately.

Read more

$723.00 AUD + GST
 $795.30 AUD Inc. GST

Features:

Designed for HVAC applications with capacitance, DC Current (µA), and temperature measurements
Small body and jaws fit perfectly in your hand and into tight places
Handy 'Display Hold' button keeps measurements on the display
Meter controls are positioned so current measurements can be done with one hand (index finger on clamp opening lever and thumb on rotary switch)
Large, backlit display is easy-to-see in less than ideal conditions
Auto shut-off maximizes battery life so the meter works when you need it
Three year warranty

Functions:

Capture flue gas temperatures
Conduct flame rod testing
Measure start and run motor capacitors
Measure supply side current and voltage as well as load side current and voltage
Measure current and voltage phase balance on 3 phase systems
Troubleshoot compressor electrical motor faults
Measure performance of variable frequency drives

Specifications



Voltage DC range: 0 – 600.0 V
Voltage DC accuracy: 1% ± 5 counts
Voltage AC (True RMS) range: 0 – 600.0 V
Voltage AC (True RMS) accuracy: 1% ± 5 counts (50/60 Hz)

Current AC (True RMS) range: 0 – 600.0 A
Current AC (True RMS) accuracy: 2.0% ± 5 counts (50/60 Hz)
Current DC Range: 0 - 200.0 µA
Current DC Range accuracy: 1.0% ± 5 counts

Resistance range: 0 – 9999 O
Resistance range accuracy: 1.5% ± 5 counts

Continuity: <= 30 O

Type K Thermocouple range: -10 degree C to 400 degree C (-14 degree F to 752 degree F)
Type K Thermocouple Accuracy +/- 1.0% + 0.8 degree C (+/- 1.0% + 1.5 degree F) typical
Capacitance range: 1-1000 µF
Capacitance accuracy: 1.9% ± 2 counts
