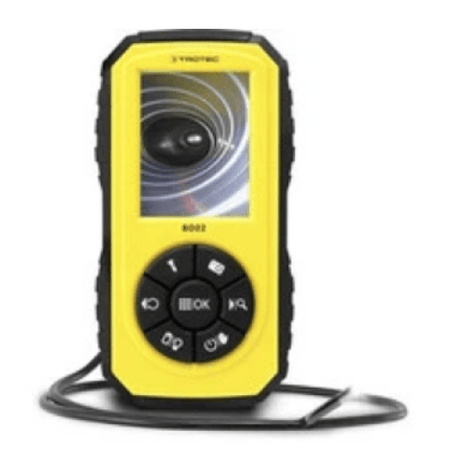

TROTEC BO22 Mini Videoscope

ORDER ME IN
Product code: BO22

Order Me In, Once ordered this item will likely dispatch before the 18th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The compact solution for visually inspecting poorly accessible areas with the option to take photos or videos for documentation purposes.

-Light and compact with carry case.
-3 inch digital LCD colour display.
-Memory function to take individual photographs or record complete video sequences.
-Water-proof camera head (IP67 type of protection).

Read more

$359.30 AUD + GST
 $395.23 AUD Inc. GST
Display brightness control is brightening up your day
Hardly surprising that there is no daylight in hollows, cable ducts or in covered areas. To avoid losing track of what's going on, the mini videoscope comes equipped with its own light sources, allowing to illuminate the respective surroundings as required and providing for brilliant pictures. The BO22 is equipped with a camera light and a rear light.
- Camera light at the probe head: The camera light has 6 integrated LEDs and can be adjusted in 4 brightness levels, offering perfectly illuminated inspection photos and videos.
- Rear light: The additional light on the back of the device allows to illuminate objects to obtain better views. This light source can also be used as a torch.
Photo and video function
The BO22 convinces with its brilliant image quality with a maximum resolution of 1280 x 720 pixels. To have an even better view of the details, you can "freeze" a picture sequence while transmitting videos. This makes it possible to have a closer look on the still image. 3x digital zoom allows to zoom in on image sections with 1, 1.5 or 2.0x zoom.
If a microSD card has been inserted into the device, all recordings can be saved in the form of pictures or videos. Thanks to the practical flip function, the image can be rotated by 180, allowing for perfect views in nearly any working position.
Attachments and accessories:
- 45 degrees mirror attachment: In order to perform a thorough inspection from all sides and perspectives, a 45 degrees mirror attachment is included in the complete set. This attachment even makes it possible to look around the corner.
- Hook attachment: Once you detected and located the lost item or foreign object by means of the probe, you can simply re-attain or remove it with the hook attachment. This way, pieces of jewelry that were believed to be lost finally came to light again.
- Magnet attachment: Without having to move furniture in an exhausting way, the BO22 is perfect to find or remove screws, nuts, coins and other metal parts containing iron, nickel or cobalt under heavy cupboards and sitting room suites. It will also be too easy to quickly and safely detect ear studs and rings in the drain. Retrieving is conveniently carried out with the practical magnet attachment on the camera.

Specifications

- Resolution: 640 x 480 pixels
- Video format: *.avi
- Video resolution: 1280 x 720 pixels
- Photo format: *.jpg

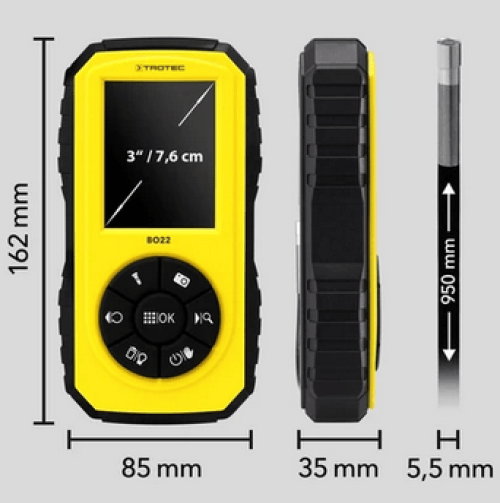

- Display: 3.0 inch digital LCD
- Storage: on microSD card, up to 32 GB (sold separately)
- Camera diameter: 5.5 mm
- Length of the gooseneck probe: 95 cm
- DOF: approx 1 to 30 cm
- Field of Vision: 65 degrees
- Zoom: 1/1.5/2-fold zoom
- Operating/Storage temperature: -10 to 60 C
- Type of protection: IP67
- Power supply: 4x alkaline LR6 AA, 1.5 V
