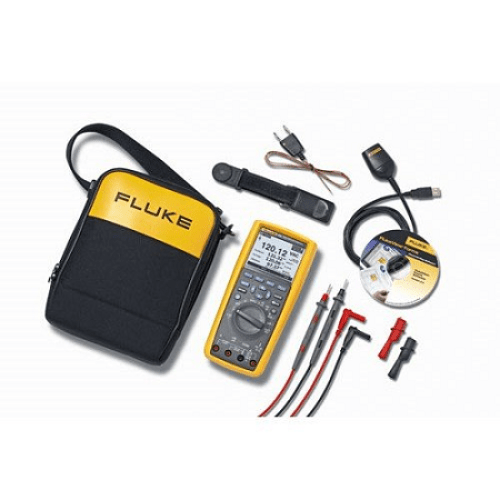

TRMS INDUSTRIAL LOGGING DMM W TRENDCAPTURE FLUKE VIEW FORM SFTWE - IC-FLUKE-289/FVF
Order Me In, Once ordered this item will likely dispatch before the 13th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$1,899.70 AUD Inc. GST
0.025 % basic dc accuracy.
100 kHz ac bandwidth.
Measure up to 10 A (20 A for 30 seconds).
100 mF capacitance range.
Comes with Flukeview software
FlukeView forms enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.
TrendCapture graphically displays logged data session
True-RMS ac voltage and current for accurate measurements on complex signals or non-linear loads.
Real time clock for automatic time stamping of saved readings.
Zoom on trend provides unprecedented ability to view and analyze TrendCapture data
Selectable ac filter (smoothing mode) for better display
Adjustable recording and auto hold thresholds.
Large 50,000 count, 1/4 VGA dot matrix display with white backlight.
Logging function with expanded memory for unattended monitoring of signals.
Can store up to 15,000 recorded events.
Save multiple logging sessions before pc download is necessary.
Two terminal 50 ohm range with 1 milliohm resolution, 10 mA source current.
Low Pass filter for accurate voltage and frequency measurements.
LoZ Volts. Low impedance voltage function for eliminating ghost voltages.
On board help screens for measurement functions.
Real time clock for automatic time stamping of saved readings.
Relative mode to remove test lead resistance from low ohms or capacitance measurements.
True-RMS ac voltage and current for accurate measurements on non-linear signals.
Measure up to 10 A (20 A for 30 seconds).
100 mF capacitance range.
Peak capture to record transients as fast as 250 s.
Premium test leads and alligator clips included.
Amp jack plugs included.
Compatible with Fluke Connect mobile app and all Fluke FC enabled test tools
With ShareLive video call (requires Fluke Connect mobile app and ir3000 FC wireless connector).
Specifications
AC/DC volts range and resolution: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
Basic accuracy: 0.025 %
True-RMS: 0.4 %
AC/DC current range and resolution: 500.00 A, 5000.0 A, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
Basic accuracy: 0.05 %
True-RMS: 0.6 %
Temperature (excluding probe): -200.0 C to 1350.0 C (-328.0 F to 2462.0 F)
Accuracy: 1%
Capacitance: 1.000 nF,10.00 nF 100.0 nF, 1.000 F, 10.00 F, 100.0 F, 1000 F, 10.00 mF, 100 mF
Accuracy: 1%
Frequency: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
Accuracy: 0.005%
