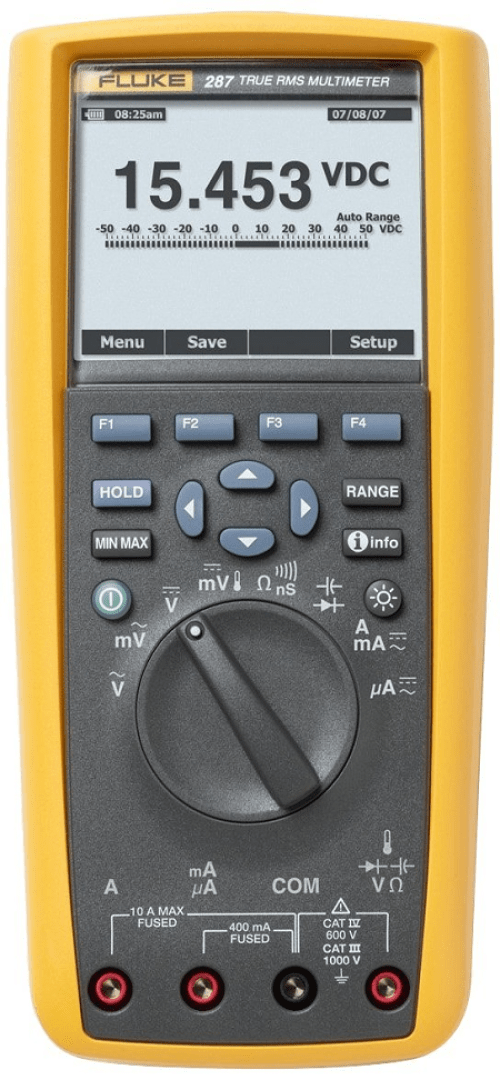

TRMS ELECTRONICS LOGGING - IC-FLUKE-287
Order Me In, Once ordered this item will likely dispatch before the 13th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$1,584.00 AUD Inc. GST
• True-RMS ac voltage and current for accurate measurements on complex signals or non-linear loads.
• Can quickly graphically displays logged data session through TrendCapture.
• TrendCapture data analysis and data zoom function.
• Selectable ac filter (smoothing mode).
• Adjustable recording and auto hold thresholds
• Logging function with expanded memory for unattended monitoring of signals over time.
• On board help screens for measurement functions.
• Memorry store and Recall function
• Multi-lingual interface.
• Multiple logging sessions possible without download.
• 0.025 % basic dc accuracy.
• 100 kHz ac bandwidth.
• Real time clock for automatic time stamping of saved readings.
• AC bandwidth specified to 100 kHz.
• Measure up to 10 A (20 A for 30 seconds).
• 100 mF capacitance range.
• Temperature function.
• Large 50,000 count, 1/4 VGA display with white backlight
• Relative mode to remove test lead resistance from low ohms or capacitance measurements.
• Peak capture to record transients as fast as 250 μs.
• Premium test leads and alligator clips included.
Specifications
AC/DC volts range and resolution: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
Basic accuracy: 0.025 %
True-RMS: 0.4 %
AC/DC current range and resolution: 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
Basic accuracy: 0.05 %
True-RMS: 0.6 %
Temperature (excluding probe): -200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F)
Capacitance: 1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
Frequency: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
