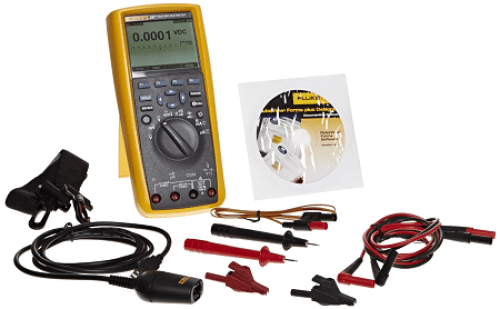

TRMS ELECTRONICS LOGGING DMM W TRENDCAPTURE FLUKE VIEW FORM SFTWE - IC-FLUKE-287/FVF
Order Me In, Once ordered this item will likely dispatch before the 13th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$1,711.60 AUD Inc. GST
• 0.025 % basic dc accuracy.
• 100 kHz ac bandwidth.
• Measure up to 10 A (20 A for 30 seconds).
• 100 mF capacitance range.
• Comes with Flukeview software
• FlukeView forms enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.
• TrendCapture graphically displays logged data session
• True-RMS ac voltage and current for accurate measurements on complex signals or non-linear loads.
• Real time clock for automatic time stamping of saved readings.
• Zoom on trend provides unprecedented ability to view and analyze TrendCapture data
• Selectable ac filter (smoothing mode) for better display
• Adjustable recording and auto hold thresholds.
• Large 50,000 count, 1/4 VGA dot matrix display with white backlight.
• Logging function with expanded memory for unattended monitoring of signals.
• Can store up to 15,000 recorded events.
• Save multiple logging sessions before pc download is necessary.
• Two terminal 50 ohm range with 1 milliohm resolution, 10 mA source current.
• Low Pass filter for accurate voltage and frequency measurements.
• LoZ Volts. Low impedance voltage function for eliminating ghost voltages.
• On board help screens for measurement functions.
• Real time clock for automatic time stamping of saved readings.
• Relative mode to remove test lead resistance from low ohms or capacitance measurements.
• True-RMS ac voltage and current for accurate measurements on non-linear signals.
• Measure up to 10 A (20 A for 30 seconds).
• 100 mF capacitance range.
• Peak capture to record transients as fast as 250 μs.
• Premium test leads and alligator clips included.
• Amp jack plugs included.
• Compatible with Fluke Connect mobile app and all Fluke FC enabled test tools
• With ShareLive™ video call (requires Fluke Connect mobile app and ir3000 FC wireless connector).
Specifications
AC/DC volts range and resolution: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
Basic accuracy: 0.025 %
True-RMS: 0.4 %
AC/DC current range and resolution: 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
Basic accuracy: 0.05 %
True-RMS: 0.6 %
Temperature (excluding probe): -200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F)
Accuracy: 1%
Capacitance: 1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
Accuracy: 1%
Frequency: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
Accuracy: 0.005%
