Transport Shock Monitoring Data Logger (All Sensors) - MSR175PRO-All sensors
Order Me In, Once ordered this item will likely dispatch before the 21st of March 2026, call 1300 737 871 (NZ 0800 737 871) to confirm.
- - 3-axis acceleration sensor with selectable measuring ranges ±10 g, ±20 g or ±40 g
- - Also measures temperature, relative humidity, air pressure and light
- - Memory capacity: 2 million measurement values
$2,044.90 AUD Inc. GST
The new MSR175Pro is MSR's next-generation shock data logger for transformer transport and demanding heavy-load applications. This configuration includes all sensors allowing the MSR175Pro to also measure temperature, humidity, light and air pressure.
Building on the proven performance of the MSR175 series, the MSR175Pro has been specifically designed to meet the requirements of the energy sector and to ensure the safe transport of high-value, heavy and sensitive goods. It provides an excellent solution for customers in the energy industry, heavy-load logistics and high-value industrial goods transportation.
Key features of the MSR175Pro
- Integrated 3-axis acceleration sensor built into the housing, measuring range selectable between ±10 g, ±20 g or ±40 g
- Adjustable measurement and storage rate: 4 Hz, 8 Hz, 16 Hz, 31 Hz, 62 Hz, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz
- Use of anti-aliasing filter and decimation filter
- High-pass filter for removing static acceleration (gravitational acceleration)
- Shock threshold adjustable in steps of 0.5 g
- Ring memory for up to 1,000 shock events
- Separate, non-rewritable additional memory for relevant shock events above a second threshold value
Includes proven features of the MSR175 series
- Includes internal sensors for temperature, humidity, light, and air pressure
- Measuring and storage rate of the environmental sensors: every 10 minutes
- Over 2 million measured values storage capacity
- Replaceable Li-SOCl₂ battery with a service life of at least 2 years (depending on sampling rate and number of events)
- Multi-colour LED indicators for status, memory and battery
- Robust IP65 design for harsh transport environments
- Mounting via screws
- MSR175 software package included: Dashboard software for easy commissioning, MSR ReportGenerator for automatic creation of transport reports, MSR ShockViewer for in-depth analysis and visualisation of shock sequences, Export to standard formats (CSV, PDF) for engineering and quality assurance
Specifications
3-axis-acceleration:
- Range: ±10 g, ±20 g or ±40 g (selectable) (-20…+65 °C)
- Measurement storage rate: 4 Hz, 8 Hz, 16 Hz, 31 Hz, 62 Hz, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz
Temperature:
- Range: -20…+65 °C
- Accuracy: ±0,5 °C (-10…+65 °C)
- Measurement storage rate: 10 min./30 min.
Relative humidity:
- Range: 0…100 % rel. humidity (-20…+65 °C)
- Accuracy: ±2 % rel. humidity (10…85 %, 0…+40 °C) / ±4 % rel. humidity (85…95 %, 0…+40 °C)
- Measurement storage rate: 10 min./30 min.
Air pressure:
- Range: 0…2000 mbar absolute (-20…+65 °C)
- Accuracy: ±2.5 mbar (750…1100 mbar absolute, +25 °C)
- Measurement storage rate: 10 min./30 min.
Light:
- Range: 0…83,000 lx
- Accuracy: max. sensitivity at 550 nm
- Measurement storage rate: 10 min./30 min.
General:
- Memory capacity: Over 2,000,000 measurement values.
- Shock events: 1,000 in ring buffer + 1,000 in additional memory
- Medium: Air
- Colour: Amber. blue
- Push button: Start measurement/retrieve status.

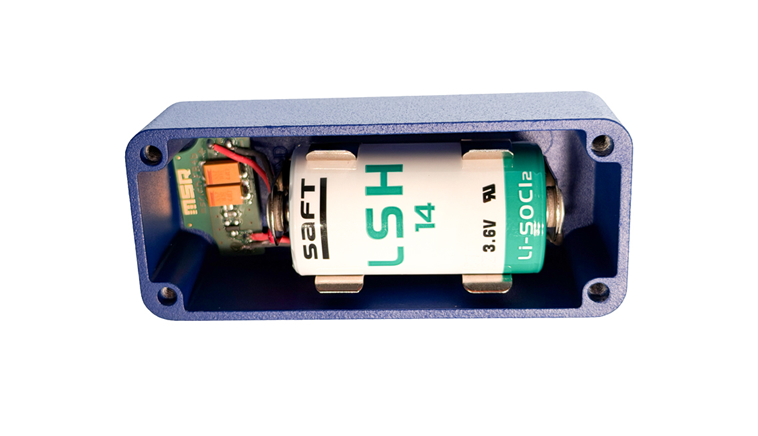

- Power supply: Replaceable Li-SOCI2 battery (SAFT LSH 14, 3.6 V, 5.8 Ah), battery operating time 2 years at least.
- Interface: USB
- Software package: MSR175 Dashboard software, MSR ReportGenerator, free MSR ShockViewer basic version. A fee-based MSR ShockViewer Pro Version will be available at a later stage. System requirements: Windows 7 or higher, USB port.
- Operating conditions: Temperature: -20…+65 °C / Humidity: +5…+45 °C (ideal storage condition for the battery), 10…95 % relative humidity, non-condensing
- Standards: The MSR175Pro complies with EU-Directives RoHS/WEEE.
