Home > Tramex Roofing Master Kit - RMK
Tramex

Tramex Roofing Master Kit - RMK

ORDER ME IN
Product code: RMK

Backorder Now, once ordered your item will dispatch before the 29th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Master kit centered on a non destructive flat roof scanner for leak detection, tracing and moisture measuring and surveying with accompanying Bluetooth app. Includes:

-The Tramex CMEX5 digital moisture meter allows for non-destructive quantitative testing of concrete per ASTMF2659.

-The Tramex Roof Master Kit is used to perform ASTM D7954.

-The Dec Scanner and the RWS Roof & Wall Scanner allowing for continuous and point-of-contact, non-destructive surveying of moisture conditions in roofing and waterproofing.

Read more

$16,681.81 AUD + GST
 $18,350.00 AUD Inc. GST
The Tramex RMK is the complete kit for the Roong Professional, including the Dec Scanner and the RWS Roof & Wall Scanner allowing for continuous and point-of-contact, non-destructive surveying of moisture conditions in roong and waterproong systems up to 6 inches in depth.
The kit also allows for non-destructive measurement of moisture conditions in concrete decks and pin readings in wood decks and roofing materials, relative humidity readings, and ambient and dew point conditions using the Tramex CMEX5 digital moisture meter and probes.
An infrared surface thermometer gives surface temperature. The kit also comes in a protective heavy-duty wheeled carry case with die-cut foam lining.
Bluetooth connectivity to the Tramex Meters App allows for visualization of Tramex CMEX5 readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your CMEX5 meter screen on your phone when extending to hard to reach places.
Dec Scanner:
- Depth of penetration: 152 mm
- Measuring Range: 0 to 100 Comparative
- Limitations: Some EPDM, Butyl rubber roofing and other conductive roofing.
Roof and Wall Scanner - RWS:
- Depth of penetration: 100mm
- Sensitivity: Four Ranges: Roofing Mode with high and low sensitivity. EIFS / Foam Roof Insulation Mode with high and low sensitivity.
Concrete Moisture Encounter X5 - CMEX5:
- Depth of penetration in concrete: approx. 20mm
- Moisture content for Concrete: 0 to 6.9 %
- Comparative for Gypsum floor screed: 0 to 12
- CM Equiv Anhydrite/Concrete: 02.7 / 0 to 4.3
- Reference scale: 0 to 100
- Relative Humidity (including with Hygro-i2 probe): 0 to 99%
- Humidity accuracy: 0% to 99%RH +/- 2% @ 25C/77F
- Moisture content for wood with wood pin probes: 5 to 30 %
Infrared Thermometer - IRT2:
- Temperature range: -50 to 650 C
- Distance to Spot ratio: D:S = 12:1
- Display resolution: 0.1 F(0.1C) <1000 1C >1000
- Accuracy for targets: Assumes ambient operating temperature of 73 to 77F (23 to 25 C) -58F ~ 68F (-50 ~ 20C) 4.5F(2.5C) 68F ~572F (20C ~300C) 1.0% 1.8F (1.0C) 572F ~ 1202F (300C ~650C) 1.5%
- Repeatability: -58~68F (-50~20C) : 2.3F(1.3C ) 68~1202F (20~650C): 0.5% or 0.9F (0.5C)
- Response time: 150ms
- Spectral response: 8~14um
- Emissivity: Digitally adjustable from 0.10 to 1.0
- Over range indication: LCD will show "----"
- Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity
- Diode laser output: <1mW,Wavelength 630~670nm, Class 2 laser product
- Operating temp.: 32 to 122F(0 to 50C)
- Storage temp.: 14 to 140F (10 to 60C)
- Relative humidity: 10%~90%RH operating, <80%RH storage
- Power supply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent
- Safety: "CE" Comply with EMC

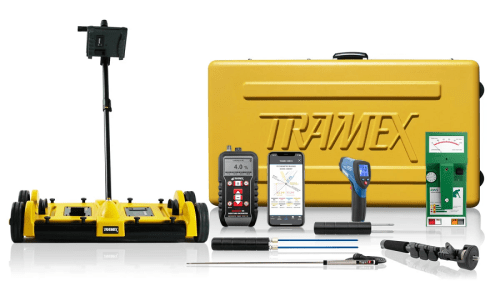

Kit Contents:
1 x Dec Scanner
1 x Roof and Wall Scanner + telescopic handle (for use on roofs) - RWS
1 x Concrete Moisture Encounter X5 - CMEX5.
1 xHand held electrode with 200mm insulated pins - SP200
1 x 260mm narrow RH probe - RHP-NWB
1 x Hole punch - HPW
1 x Infrared Thermometer - IRT2
1 x Extension Handle for CMEX5 - E5-HBS
App available for Android and iOS (phone not included)
