Tramex Dec Scanner - DS2
Order Me In, Once ordered this item will likely dispatch before the 19th of December 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

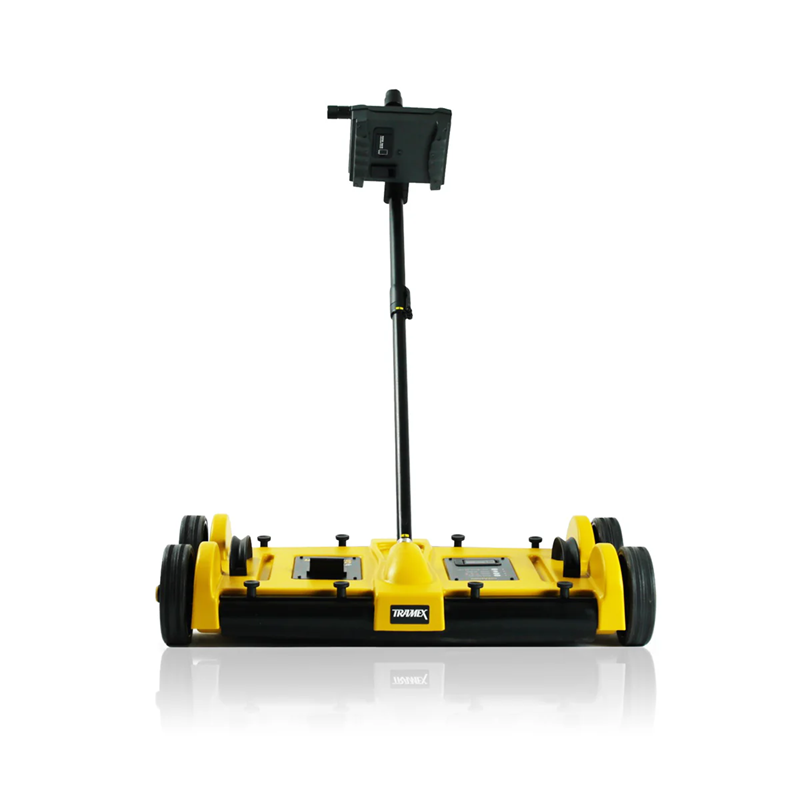

The Tramex Dec Scanner is a mobile non-destructive impedance scanner designed for the instant surveying of moisture conditions in roofing and waterproofing systems per ASTM D7954. Ideal for water leak detection in roofing materials and integrity testing. Roofing moisture meters detect leaks in roofing materials as well as measure moisture.
- Three ranges of sensitivity enabling the inspection of a variety of roof membranes and insulation thicknesses.
- Fast readings over large roof areas in a short time frame.
- Easy and safe to use with no regulatory restrictions or operating license required.
$14,245.00 AUD Inc. GST
The Tramex Dec Scanner is a mobile non-destructive impedance scanner designed for the instant surveying of moisture conditions in roofing and waterproofing systems per ASTM D7954. Ideal for water leak detection in roofing materials and integrity testing. Roofing moisture meters detect leaks in roofing materials as well as measure moisture.

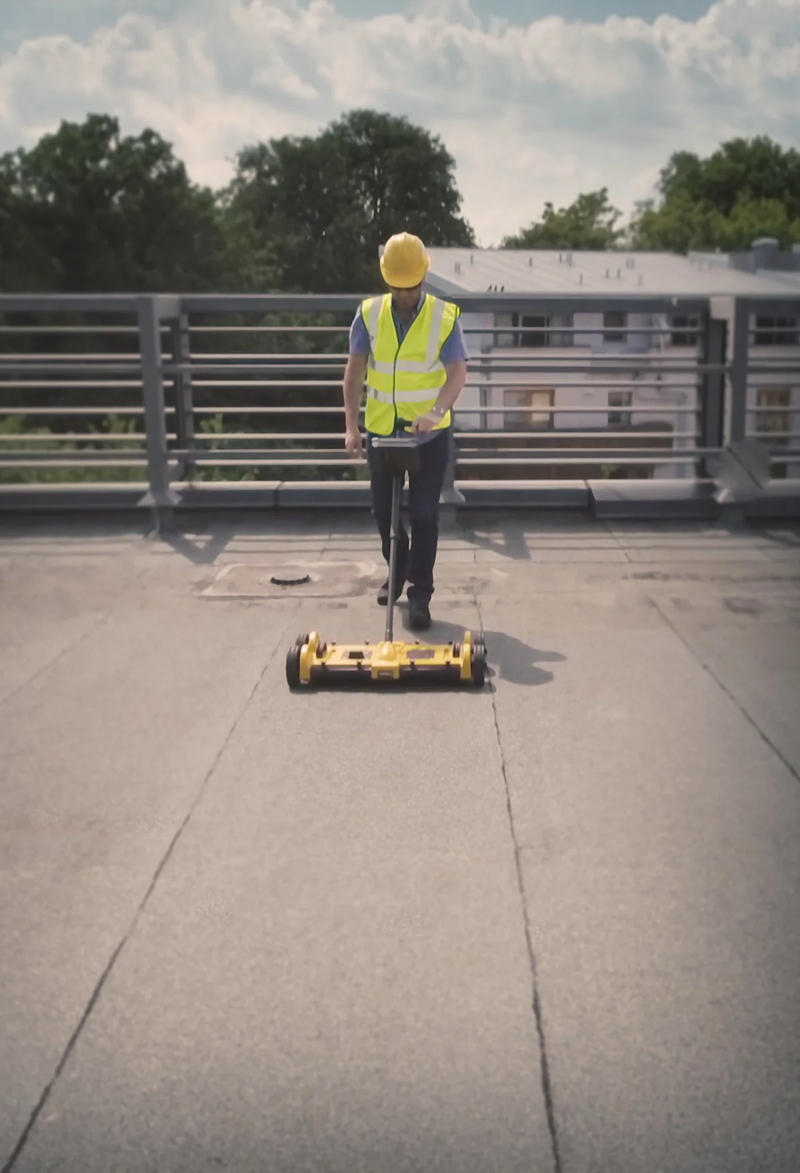

The Dec Scanner detects and evaluates the moisture conditions within roofing systems by non-destructively measuring the electrical impedance. A low frequency electronic signal is generated, transmitted into the material under test via one of the two electrodes incorporated in the rubber electrode mat, and received by the second electrode. The strength of this signal varies in proportion to the amount of moisture in the material under test. The Dec Scanner determines the strength of the current and converts this to a comparative moisture content value. By moving the Dec Scanner across a roof surface in a regular pattern, a continuous reading is obtained, and areas that contain moisture can be readily identified.
The Dec Scanner has an integrated and adjustable calibration ability allowing for precise comparative readings. There are 3 Ranges, and they should be selected as best suits the surface under test, for example:
- Range 1 - Most suitable for single-ply and thin roof coverings such as PVC, Hypalon and other smooth surfaces where insulation is wet and moisture is close to the surface.
- Range 2 - Most suitable for multi-ply built-up and modified systems, mineral surfaced felts, and other smooth or gravel surfaces where insulation is less wet and moisture is below the surface.
- Range 3 - Most suitable for thicker roof coverings such as mastic asphalt, thick gravel and stone surfaced roofing
Features
- Complies to ASTM D7954
- Non-destructive impedance moisture meter.
- Three ranges of sensitivity enabling the inspection of a variety of roof membranes and insulation thicknesses.

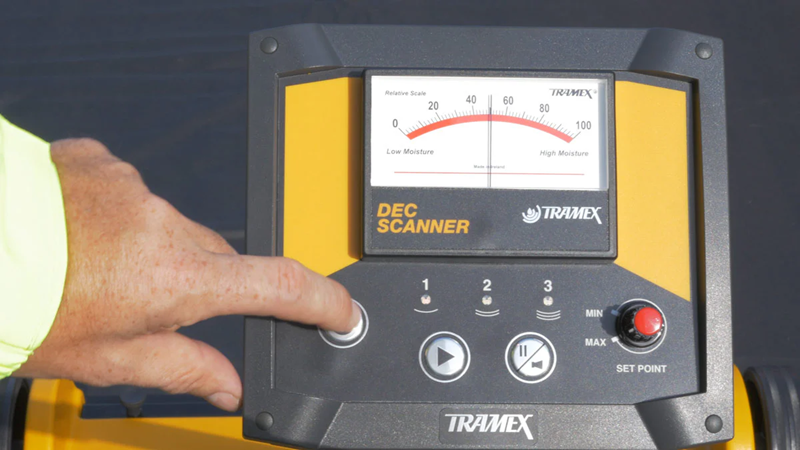

- Ergonomic easy-reach and easy to operate control panel.
- Leak tracing, water leak detection, problem sourcing, and an instantaneous and clear indication of roof condition.
- Fast readings over large roof areas in a short time frame.
- Work in normal daylight hours.
- Faster and more user friendly than nuclear meters.
- Easy and safe to use with no regulatory restrictions or operating license required.
- Dependable solid state circuitry and rugged molded body for long-term reliability.
- Battery powered - 9 Volt PP3.
Specifications
- Size: 762 mm x 400 mm x 158 mm
- Scanning area: 609 mm x 394mm

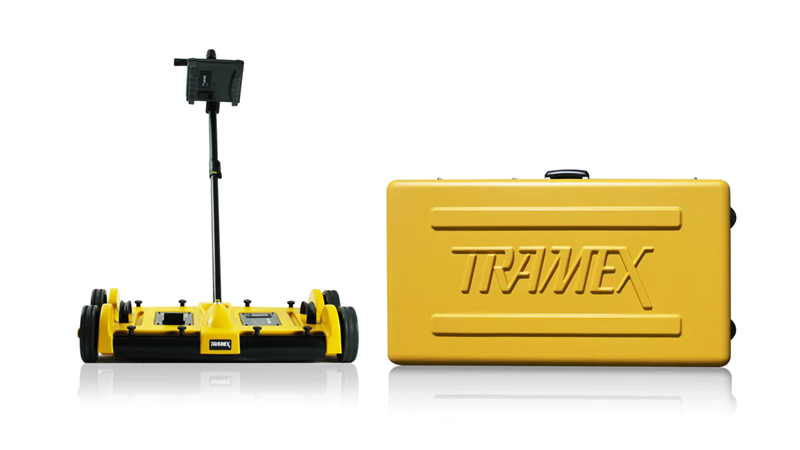

- Carry case: 940mm x 508 mm x 270mm
- Weight: Dec Scanner 9.95 Kg
- Weight: Carry Case 9.9 Kg
- Total Weight: Dec Scanner in Carry Case 21.1 Kg
- Outer packaging carton weight: 2 Kg
- Total shipping weight: 23.1Kg
- Dimensional shipping weight: 30 Kg
- Display: Analog Measuring Range: 0 to 100
- Comparative Max. depth of penetration: 152 mm
- Power Supply: 2 x 9 Volt PP3 Batteries (included)
- Limitations: Some EPDM, Butyl rubber roofing and other conductive (metal) roofing.
