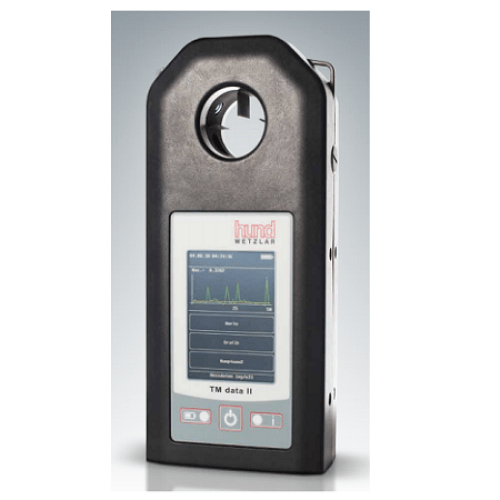

TM data II Mobile Dust Meter - IC-TM data II

ORDER ME IN
Product code: IC-TM-data-II

Backorder Now, once ordered your item will dispatch before the 23rd of July 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The TM data II is a portable dust meter appropriate for monitoring repirable, fine dust concentration according to Johannesburg Convention, BMRC/ACGIH curve, max.

Read more | Need help? 3 Hour Business Reply

$9,657.00 AUD + GST
 $10,622.70 AUD Inc. GST

The TM data II utilizes the Tyndall effect for scattered-light measurements. Maximum intensity is achieved for particles with dimensions comparable to the wavelength of the light source. As this technique is insensitive towards coarse particles, no pre-separation is necessary. With no pump equired, the instrument does not affect the aerodynamic and concentration situation at the measurement site.

Features:

Little maintenance requirements
Very long battery operation time
Intuitive operation
Direct display of measurement results via touchscreen
Straightforward evaluation with analysis software
Measurement range 10 m/m to 100 mg/m
Interfaces: USB, Bluetooth
Gravimetric calibration set available

Software features:

Numerical display of date, time, momentary and average values
Graphic display of time-domain curves for momentary and average values
Export to MS Excel
Selection of pre-defined calibration factors from a table
Calibration factors from own measurements can be stored to table

Specifications



Principle of operation: Scattered-light measurement (Tyndall effect)
Measured particle range: Respirable dust acc. to Johannesburg Convention, BMRC/ACGIH curve, max. sensitivity for particles of 1 m aerodynamic diameter
Calibration method: Comparison with gravimetric measurement
Measurement volume: approx. 0.5 cm
Measurement range [mg/m, calibrated]: 0-100 (DEHS particles, d = 1 m)
Resolution [mg/m, calibrated]: 0.01 (DEHS particles, d = 1 m)
Detection limit [mg/m]: 0.01 (measurement time at least 1 min. and with exact zero-point adjustment)
Linearity: 1 %
Temperature dependence: approx. 5 % between 10 C and 40 C
Measurement modes: Continuous momentary value and verage values
Memory capacity: at least 80.000 measurement values
Interfaces: USB and Bluetooth
User interface: Touchscreen, resistive (8.1 cm/3.2)
Charging time: approx. 6 h
Operating time when fully charged approx.: 8 h
Dimensions [mm]: 201 x 101 x 51 (L x W x H)
Minimum system requirements: PC with Windows 7 or 8.1, dual-core processor, 2 GB RAM, harddisk with 200 MB free memory, 1 free USB or Bluetooth interface
