Home > TM-903 Multimedia Cable Tester
Tenmars

TM-903 Multimedia Cable Tester

ORDER ME IN
Product code: IC-TM-903

Backorder Now, once ordered your item will dispatch before the 03rd of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

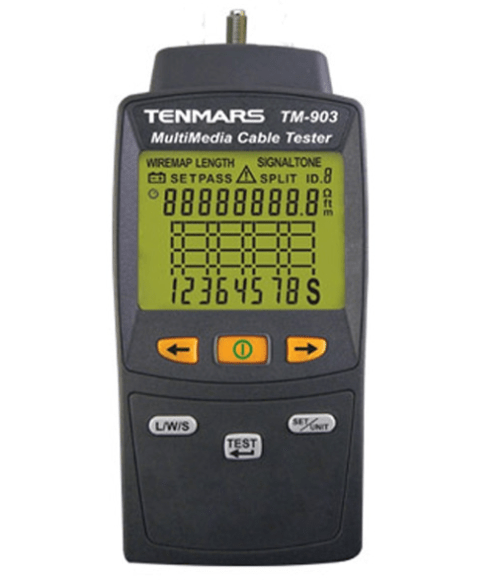

The Tenmars TM-903 Multimedia Cable Tester is a hand-held test instrument that lets you verify and troubleshoot LAN cables. Displays graph wire-map, opens, shorts, miss wires, split pairs and the remote ID number, all on one screen.

Read more

$359.70 AUD + GST
 $395.67 AUD Inc. GST

The Tenmars TM-903 Multimedia Cable Tester is a hand-held test instrument that lets you verify and troubleshoot LAN cables. Displays graph wire-map, opens, shorts, miss wires, split pairs and the remote ID number, all on one screen.

Features:
- Detects opens, shorts, miss wires and split pairs on twisted pair cabling.
- Displays graph wiremap , opens, shorts, miss wires, split pairs, and the remote ID number all on one screen.
- Identify remote ID number only one pair.
- Measures length.
- Using multiple remote ID up to 8 locators.
- Auto backlight for low light areas
- Auto power off.

Specifications

- Connector Types: RJ-45, F-Connector and RJ11
- Cable Category: LAN cable (UTP, STP), video, coaxial cable and voice cable
- Wire-Map Test: Detects opens, shorts, miswires, split pairs
- Length Test: up to 255 meters (836 feet)
- Length Resolution: 0.1meter or foot
- Length Units: Meter and Foot
- Accuracy: +/- 10% + 1.0M (3ft)
- Maximum Power (Operating): 20mA
- Operating Temperature: 5 C to 40 C, below 80% R.H.
- Storage Temperature: -10 C to 60 C, below 70% R.H.
- Power: 6 x 1.5V Type AAA batteries
- Battery Life: Approx 200 times continuous testing
- Dimensions: 156 mm (L) x 73 mm (W) x 35 mm (H)
