Tenmars | See more Other Meters | See more Tint Meters & Automotive Meters

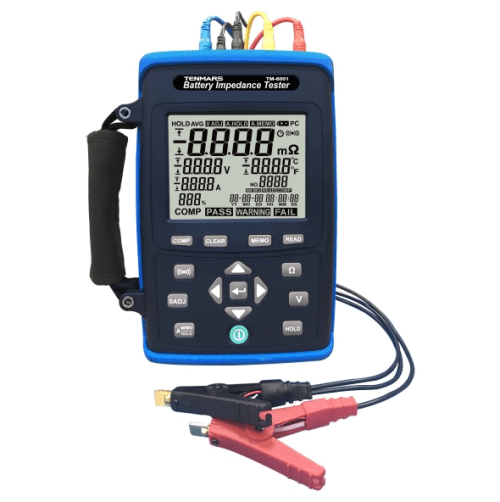

TM-6001 Battery Impedance Tester

ORDER ME IN
Product code: IC-TM-6001

Order Me In, Once ordered this item will likely dispatch before the 04th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The Tenmars TM-6001 is an ideal tester for automotive, UPS maintenance and telecommunication applications.

Read more

$2,809.70 AUD + GST
 $3,090.67 AUD Inc. GST

Features:

- Quick response time.
- Simultaneously display the results of battery Impedance,voltage measurements.
- Resistance range: 4 milliohms to 400 ohms (measuring frequency: 1KHz +/- 30Hz)
- Voltage range: 6.000V/60.00V- Comparator: voltage, impedance
- K type thermocouple: -50 to 400 C
- Max. voltage measurement:60VDC (battery checker)
- Comparator :0~99 records. For battery internal impedance, voltage
- Support the comparator function to rate the conditions as PASS, WARNING or FAIL
- USB interface datalogger with 9999 records.
- Power supply: 1.5V AA alkaline battery x 6.
- Kit includes: User's manual, carrying case, clip type test leads set, software CD, adapter AC 100~240V to DC 9~12V/1A and USB cable

Specifications


Impedance:

- Range: 4 milliohms/40 milliohms/400 milliohms/4 ohms/40 ohms/400 ohms
- Resolution: 1 microhm/10 microhm/100 microhm/1 microhm/10 microhm/100 microhm
- Current: 150 mA/15 mA/1.5 mA/ 150 uA/15 uA
- Accuracy: +/- (3% reading+20 dgt) +/- (0.8% reading+10 dgt)

Voltage:

- Range: 6.000V/60.00V
- Resolution: 1mV/10mV
- Accuracy: +/- (0.1% reading+10 dgt)

Temperature:

- Range (NTC): -20 to 60 C (-4 to 140 F)
- Resolution: 0.1 C/0.1 F
- Accuracy: +/- 1 C/ +/- 1.8 F
- Range (K Type): -50.0 to 400.0 C
- Resolution: 0.1 C / 0.1 F
- Accuracy: +/- (1%+1.0 C) / +/- (1%+1.8 F)
