Order Me In, Once ordered this item will likely dispatch before the 20th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

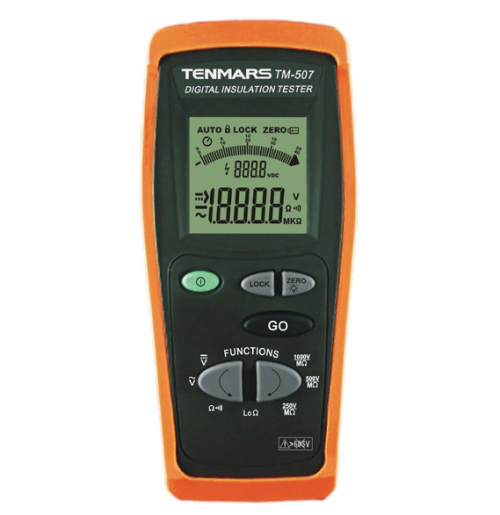

Insulation tester with auto range. Conforms to EN 61557, EN 61010-1 CAT IV 600V safety standards.
Regular price
$499.20 AUD
+ GST
$549.12 AUD Inc. GST
$549.12 AUD Inc. GST
Features:

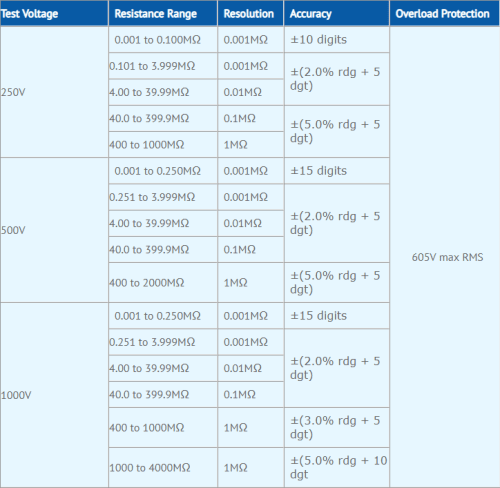

- Measures high insulation resistance with auto range (250V: 4 milliohm to 1000 milliohm/500V: 4 to 2000 milliohm/1000V: 4 to 4000 milliohm)
- Measures AC and DC voltages: 0V to 600V.
- Function Keys: POWER, GO, ZERO, LOCK, BACKLIT.
- Continuity Test.
- Auto Discharge.
- Auto Power Off.
- EN 61557, EN 61010-1 CAT IV 600V safety conformity
- With three years warranty
Specializations
DC Voltage measurement:
- Range: 0.1V to 600V
- Resolution: 0.1V
- Accuracy: +/- (0.5% of rdg + 1dgt)
- Input Impedance: 3 milliohm
- Overload protection: 605V AC max RMS
AC Voltage measurement:
- Range: 0.1V to 600V
- Resolution: 0.1V
- Accuracy: +/- (0.8% of rdg + 4dgt)
- Input Impedance: 3M?
- Overload protection: 605V AC max RMS
Resistance Measurement/Test Continuity with buzzer:
- Range: 0.1 to 199.9 ohm
- Resolution: 0.1V
- Accuracy: +/- (0.8% of rdg + 4dgt)
- Input Impedance: 3 milliohm
- Overload protection: 605V AC max RMS
- The buzzer sounds when measured resistance is lower than 30 ohms.
LO Ohms:
- Range: 0.01 to 19.99 ohm
- Resolution: 0.1 oh,m
- Accuracy: +/- (2.0% of rdg + 3dgt)
- Input Impedance: 3 milliohm
- Overload protection: 605V AC max RMS
- Test Current:>200mA DC up to 5 ohms (including cable resistance)
- Test Current:>45mA DC up to 5 ohms (including cable resistance)
- Open Circuit Voltage:4V
