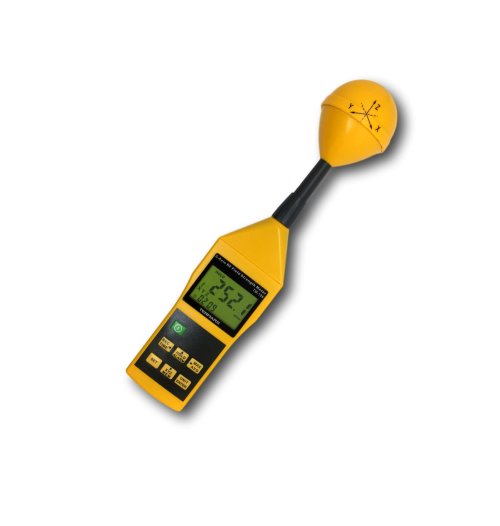

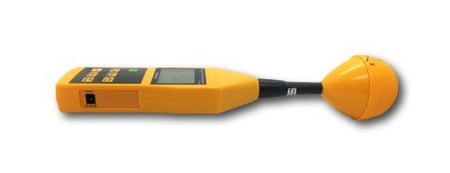

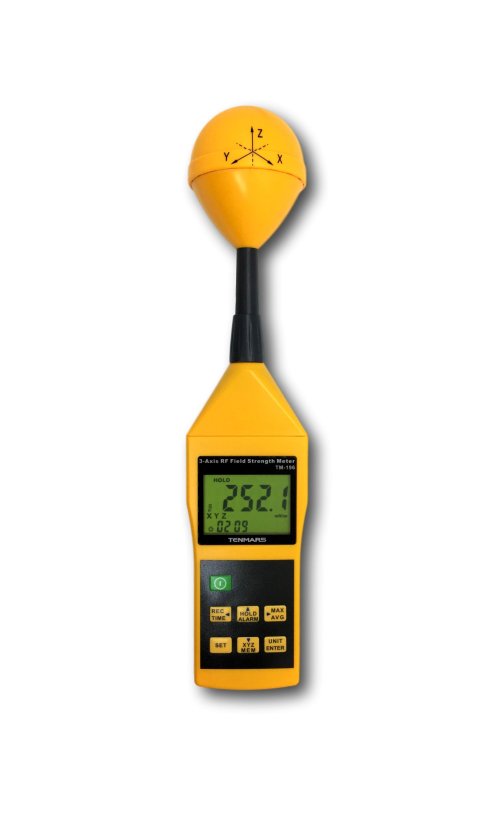

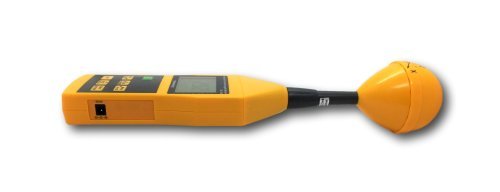

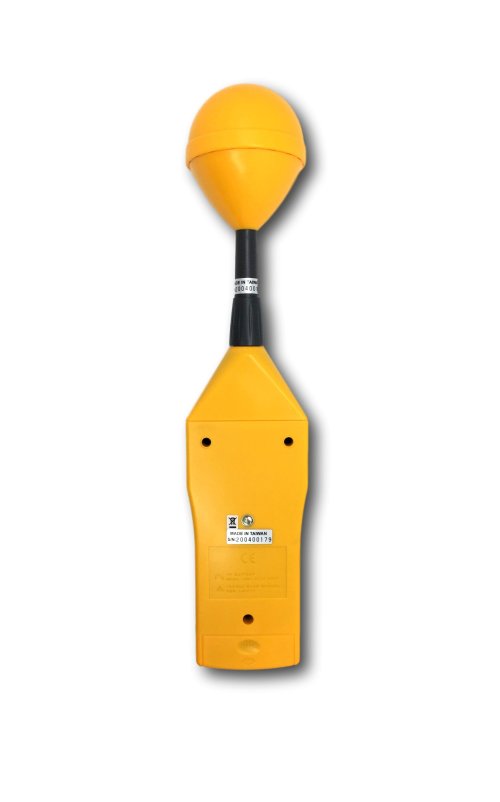

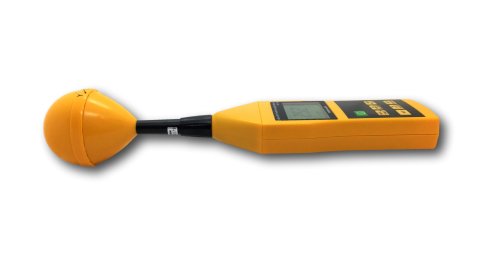

TM-196 3-Axis RF Field Strength Meter
Backorder Now, once ordered your item will dispatch before the 24th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The TM-196 is designed for measuring and monitoring Radio Frequency (RF) electromagnetic field strength. Capable of measuring the frequency range of 10 MHz to 8 GHz.
Regular price
$519.40 AUD
+ GST
$571.34 AUD Inc. GST
$571.34 AUD Inc. GST
|
Features: - 10 MHz to 8 GHz Frequency Range.
- Measurement ranges: 38mV to 20V/m.
- Isotropic electromagnetic field measurements.

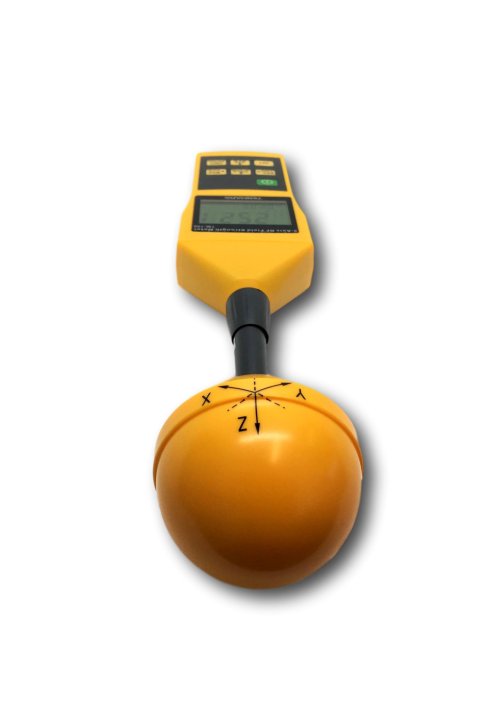

- Non-directional (isotropic) measurements with three-channel sensor.
- High dynamic range. (due to 3-channel digital result processing).
- Configurable Alarm Threshold and Memory function.
- Low battery indication.
- Overload indication.
- Auto Power Off (adjustable from 0 to 99 minutes) with disable function.
- Three years warranty
Specifications- Display: 3-3/4 digit LCD, maximum reading 3999
- Frequency Range: 10 MHz to 8 GHz
- Measurement Units: mV/m, V/m, uA/m, mA/m, uW/m2, mW/m2, uW/cm2
- Display Resolution: 0.1mV/m, 0.1 uA/m, 0.001 uW/m2, 0.001 uW/cm2
- Manual Data Memory: Read Storage: 200 data sets
- Alarm Function: Adjustable threshold with ON/OFF
- Memory Recall: Maximum and Average
- Calibration (CAL): Adjustable
- Sampling Time: 2.5 times per second
- Operating Temperature/Humidity: 0 C to 50 C; Humidity 25% to 75% R.H.
- Storage Temperature/Humidity: -10 C to 60 C; Humidity 0% to 80% R.H.
- Power Supply: 9 Volt Alkaline battery. NEDA 1604, IEC 6F22, or JIS 006P
- Battery Life: approx. 5 hours
- Dimensions: 380mm (L) x 80mm (W) x 77mm (D)
Applications:
- HF electromagnetic wave field strength measurements.
- Mobile phone base station antenna radiation power density measurement.
- Wireless communication applications (CW, TDMA, GSM, DECT).
- RF power measurements (Transmitters).
- Wireless LAN (Wi-Fi) detection, and installation.
- Spy camera, wireless bug finder.
- Cellular/Cordless phone radiation safety levels.
- Microwave oven leakage.
- EMF safety (environmental applications).
|
