Home > TM-103 Sound Level Logging Meter
Tenmars

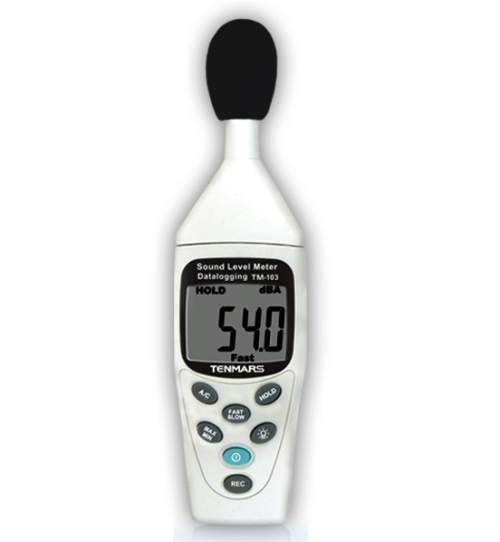

TM-103 Sound Level Logging Meter

ORDER ME IN
Product code: IC-TM-103

Backorder Now, once ordered your item will dispatch before the 04th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Type 2 Sound level meter and data logger. Can store up to 14,000 recordings and has RS-232 Interface for data download. Conforms to IEC 61672.

Read more

$429.50 AUD + GST
 $472.45 AUD Inc. GST

Features:

- 3-1/2 digit LCD display with maximum reading of 2000.
- Conforms to IEC 61672 Type II
- Backlit display
- Test Ranges: 30dB to 130dB, LO 30dB to 80dB, MED 50dB to 100dB, and HI 80dB to 130dB.
- Accuracy: +/- 1.5dB (ref 94dB) at 1kHz.
- Resolution: 0.1dB.
- Microphone: 1/2 Electret condenser microphone.
- Frequency Weighting: A and C.
- Time Weighting: FAST, SLOW.
- Can store up to 14,000 records
- Auto Ranging, Auto Power Off, Data Hold, Max/Min.
- RS-232 Interface for data download to Windows compatible PC.
- Dynamic Range: 50dB.
- Frequency Range: 30Hz to 8kHz.
- Includes battery and owner's manual
- Designed to meet the measurement requirements of safety Engineers, Health, Industrial safety offices and quality control in various environments.
- Warranty: 3 years

Specifications

- Test ranges: 30dB to 130dB (LO: 30db to 80dB; MED: 50dB to 100dB; HI: 80dB to 130dB)
- Accuracy: +/- 1.5 dB (ref 94db at 1 kHz)
- Resolution: 0.1dB
- Display: 3-1/2 digit LCD display with backlit
- Data storage: 14,000
- Connection: RS-232
- Microphone: 1/2-inch Electret condenser microphone
- Frequency Weighting: A and C
- Time Weighting: Fast and Slow
- Dynamic Range: 50dB
- Frequency Range: 31.5Hz to 8000Hz
- Functions: Auto Ranging, Auto Power Off, Data Hold, Min/Max
- Dimensions: 200 mm (L) x 55 mm (W) x 38 mm (D)
- Weight: approx. 290g (including batteries)
