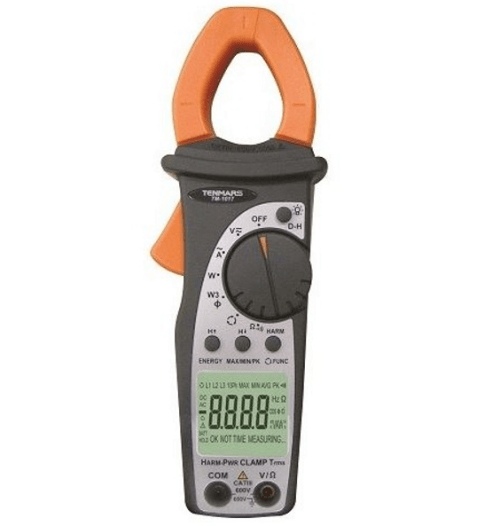

TM-1017 400A True-Rms Plus Phase Rotation Clamp Meter
Backorder Now, once ordered your item will dispatch before the 24th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Tenmars TM-1017 clamp meter can measure AC current of up to 400A. Also measures AC and DC voltage, resistance, continuity and frequency.
Regular price
$399.30 AUD
+ GST
$439.23 AUD Inc. GST
$439.23 AUD Inc. GST
The Tenmars TM-1017 clamp meter can measure AC current of up to 400A, and can measure AC and DC voltage, resistance, continuity and frequency.
The TM-1017 can also measure active power, reactive power and apparent power, energy as well as power factor on single and three phase systems with a maximum conductor size of 30mm.
Includes 3 years warranty.
Features:
- Measures AC current up to 400A
- Measures AC and DC voltage up to 600V
- Active, Reactive and Apparent Power
- Power Factor
- Energy
- Phase sequence and rotation
- Maximum conductor size 30mm
- Harmonics to 25th order
- Total Harmonic Distortion
- Resistance
- Continuity
- Frequency
- Auto Ranging
- Backlit LCD display with segmented bar graph
- Peak Hold
- MAX / MIN functions
- Data Hold (freezes the display)
Specifications
- Maximum Current: 400 Amps
- Display Counts: 10000 (Backlit LCD display)
- Maximum Conductor Size: 30 mm
- AC Current Range: 0.1A to 400A, +/- (1.0% of rdg + 3 dgts)
- AC Voltage Range: 0.1V to 599.9V, +/- (1.0% of rdg + 3 dgts)
- DC Voltage Range: 0.1V to 599.9V, +/- (1.0% of rdg + 3 dgts)
- Resistance: 0.1 ohm to 1999 ohms +/- (1.0% of rdg + 5 dgts)
- Continuity Buzzer: Yes
- Frequency: 40Hz to 399.9 Hz +/- (0.5% of rdg + 1 dgt)
- Bar graph: Yes
- Autoranging: Yes
- Auto Power Off: Yes
- Peak Hold: Yes
- Data Hold: Yes
- Min/Max: Yes
- Power Supply: 2 1.5V type AAA batteries
- Dimensions: 205 mm (L) x 64 mm (W) x 39 mm (D)
