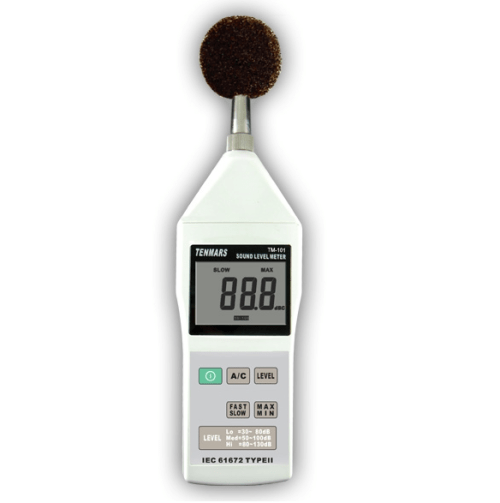

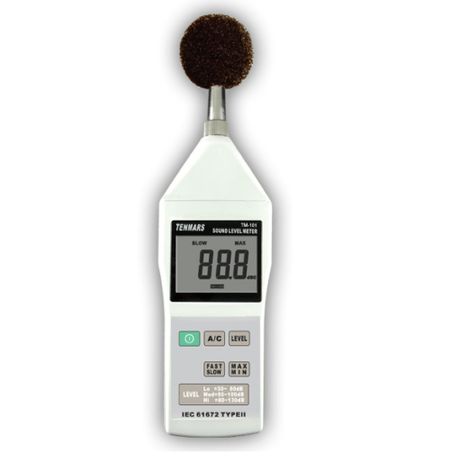

TM-101 Sound Level Meter with AC/DC output
Backorder Now, once ordered your item will dispatch before the 24th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Type 2 Sound level meter with AC/DC output. Conforms to IEC 61672.
Regular price
$319.40 AUD
+ GST
$351.34 AUD Inc. GST
$351.34 AUD Inc. GST
Features:
- 3-1/2 digit LCD display with maximum reading of 2000.
- Conforms to IEC 61672 Type II
- Test Ranges: 30dB to 130dB, LO 30dB to 80dB, MED 50dB to 100dB, and HI 80dB to 130dB.
- Accuracy: +/- 1.5dB (ref 94dB) at 1kHz.
- Resolution: 0.1dB.
- Microphone: 1/2 Electret condenser microphone.
- Frequency Weighting: A and C.
- Time Weighting: FAST, SLOW.
- Autoranging, Auto Power Off, Data Hold, and Min/Max functions.
- Dynamic Range: 50dB.
- Frequency Range: 31.5Hz to 8kHz.
- AC/DC output signal for use with data-loggers.
- Includes battery and owner's manual
- Warranty: 3 years
Specifications
- Test ranges: 30dB to 130dB (LO: 30db to 80dB; MED: 50dB to 100dB; HI: 80dB to 130dB)
- Accuracy: +/- 1.5 dB (ref 94db at 1 kHz)
- Resolution: 0.1dB
- Display: 3-1/2 digit LCD display
- Microphone: 1/2-inch Electret condenser microphone
- Frequency Weighting: A and C
- Time Weighting: Fast and Slow
- Dynamic Range: 50dB
- Frequency Range: 31.5Hz to 8000 Hz
- Dimensions: 280 mm (L) x 80 mm (W) x 32 mm (D)
- Weight: approx. 500g (including batteries)
