Precision Wireless Temperature Data Logger - External Probe

DISCONTINUED
Product code: Therm-A-lert-P

Unfortunately, the Therm-A-lert-P has been discontinued and has been replaced by the RFTCTemp2000A.

Precision wireless temperature data logger with external probe

Read more | Need help?

Unfortunately, the Therm-A-lert-P has been discontinued and has been replaced by the RFTCTemp2000A.

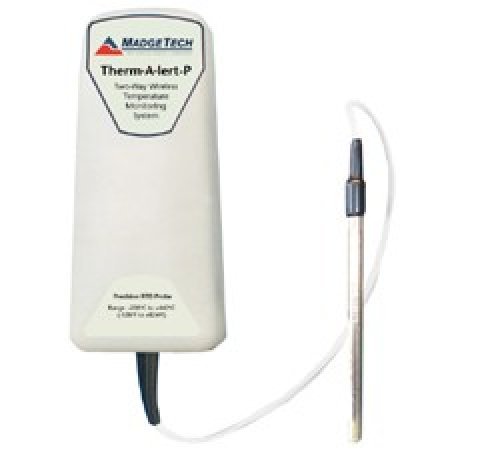

The MadgeTech Therm-Alert-P temperature monitoring and alarming system is designed specifically for hospitals, laboratories, pharmaceutical facilities and other critical temperature monitoring areas. The system can be used to monitor a single temperature location or expanded to include hundreds of locations by adding additional transmitters.

Therm-Alert-P provides real time notification of temperature deviations, and features a user programmable alarm that can be configured to send a message via text message, screen alarm and/or e-mail if an alarm condition occurs. The system includes an RTD probe with a 3 lead wire and a 3 probe sheath.

The Therm-Alert-P system is equipped with wireless two-way communication. Full communication can be performed directly from a central PC, including starting, stopping and downloading. In addition to wirelessly transmitting data, Therm-Alert-P also stores each reading to internal memory for backup. This back up data may be retrieved wirelessly at a later time. Customers can setup automatic archiving preferences, ensuring all data is saved and retained to comply with federal regulations.

Receiver, Software and Cable
This unit requires the RFC1000 for using this data logger


Specifications

Temperature

Remote Channel Temperature Range

-200C to +440C (-328F to +824F)

Remote Channel Temperature Resolution

0.01C

Remote Channel Temperature Calibrated Accuracy

0.1C (14F to 302F/-10C to +150C)
0.5C (outside of that range)


Wireless

RF Carrier Frequency

2.45GHz IEEE 802.15.4 ultra-low power MadgeNET wireless transceiver with fully bi-directional communication

Output Power

+0dBm typical

Receiver Sensitivity (RFC101A)

-95dBm typical (RFC1000)

Typical outdoors Line of sight

Up to 400'

Typical Indoors line of sight

Up to 150'

General

Memory

30,000 readings

Reading Rate

1 reading every 2 seconds to 1 every 24 hours

Battery Life

2 years Typical

Material

ABS Plastic

Operating Environment

-20C to +80C (-4F to 176F), 0%RH to 95%RH non-condensing

Required Interface Package

RFC1000

Approvals

US(FCC), CA(IC), CE
