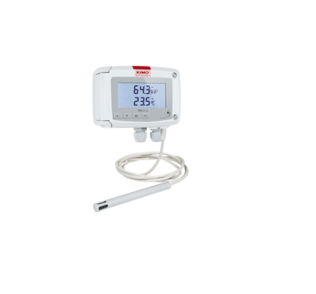

TH210-HODP-300 Humidity and Temperature Transmitter (Remote, With Display)
TH210-HODP-300 Humidity and Temperature Transmitter (Remote, With Display)
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 11th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The TH210-HODP is a humidity and temperature transmitter with 230 Vac supply and remote probe setup with a measurement range of -20 to +80 C and polycarbonate probe.
- Measures relative and absolute humidity, dew point, wet and dry temperature and enthalpy.
- Reliably converts the current humidity and temperature into a standardized process signal.
- Built ABS V0 IP65 housing with display.
Regular price
$939.90 AUD
+ GST
$1,033.89 AUD Inc. GST
$1,033.89 AUD Inc. GST
The TH210-HODP-300 reliably converts the current humidity and temperature into a standardized process signal. The trend indicator informs about the current trend of the measured value.
The transmitter can be mounted quickly and easily at the desired location using a mounting plate.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
TH210-HODP-300 Features
- Configurable measuring ranges for humidity (5 to 95%HR) with a temperature range of -20 to 80 C
- Functions: relative and absolute humidity, dew point, wet and dry temperature and enthalpy
- Includes polycarbonate probe with 300 mm cable
- 24 Vac/Vdc output
- Trend indicator
- ABS V0 IP65 housing with display
- Turn system mounting with wall-mount plate
Specifications
Measuring range (Temperature)
|
-40 to 180 C
|
Measuring range (Humidity)
|
From 5 to 95% RH
|
Temperature Accuracy (Repeatability, linearity, hysteresis)
|
1.5%RH (if 15C T 25 C)
|
Humidity Accuracy (Repeatability, linearity, hysteresis)
|
1.5%RH (if 15C T 25 C)
|
Temperature Resolution
|
0.1 C
|
Humidity Resolution
|
0.1%RH
|
Response time:
|
T90 = 0.9 second for Vair = 1 m/s; < 10 seconds (from 10 to 80%RH, Vair = 2 m/s)
|
Storage temperature
|
From -10 to +70 C
|
Type of sensor (Temperature)
|
Pt100 1/3 as per DIN IEC751
|
Type of sensor (Humidity)
|
Capacitive
|
