TH20-PNS CL.20 Humidity and Temperature Transmitter - TH20-PNS
Order Me In, Once ordered this item will likely dispatch before the 16th of April 2026, call 1300 737 871 (NZ 0800 737 871) to confirm.
$141.26 AUD Inc. GST

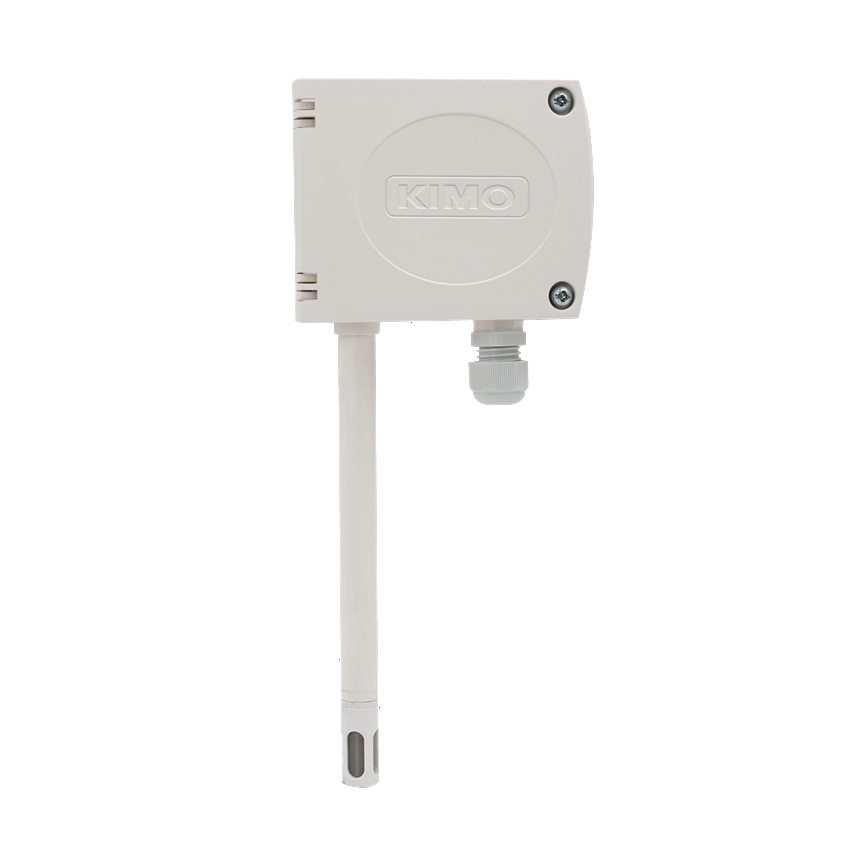

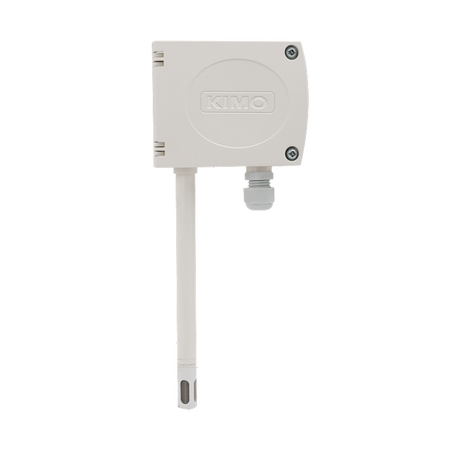

TH20 transmitters measure humidity from 0 to 100 %RH and temperature from -20 to 60°C in room or ducts.
The TH20-PNA has a passive power supply (4-20 mA, 3-4 wires), has no display and has an ambient sensor with wall mount.
Specifications
Humidity:
- Measuring Range: 0 to 100 %HR
- Measurement Units: %HR
- Accuracy: 0 °C to 30 °C: ±2 %RH from 10 to 80 %RH; -20 °C to 60°C: ±0.04 x (T-20) %RH
Temperature:
- Measuring Range: 20 to 50 °C
- Measurement Units: °C, °F
- Accuracy: -20 to 50 °C: ±0.3 °C
General:
- Output / Supply: Passive sensor 4-20 mA (power supply 16/30 Vdc), 2 wires
- Maximum load: 500 Ω (4-20 mA) - Minimum load: 1 kΩ (0-10 V) / 24 Vac 50Hz / 24Vdc ±10%
- IP Protection: IP 54
- Standards: UKCA 2011/65/EU RoHS II / 2012/19/EU WEEE / 2014/30/EU EMC
- Power supply: 24 Vac/Vdc ±10% ou 16/30 Vdc
- Consumption: 1.5 VA
- European directives: 2014/30/EU EMC; 2015/863/EU RoHS 3; 2012/19/EU WEEE
- Security Protection: class 3 - Pollution degree 2
- Electrical connection: Screw terminal block for cables from 0.15 to 1.5 mm2 or from 21 to 16 AWG. Carried out according to the code of good practice
- Environment: Air and neutral gases
- Response time: 15 seconds
- Conditions of use (°C/%RH/m): -20 to 50 °C. In non-condensing condition. From 0 to 2000 m (0 to 6561’).
- Storage temperature From -25 to +70 °C (-13 to 158 °F)
