TH-174 Portable Hardness Tester Complete Kit - TH-174C
TH-174 Portable Hardness Tester Complete Kit - TH-174C
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
TH-174 Portable Hardness Tester Complete Kit
Regular price
$2,299.90 AUD
+ GST
$2,529.89 AUD Inc. GST
$2,529.89 AUD Inc. GST

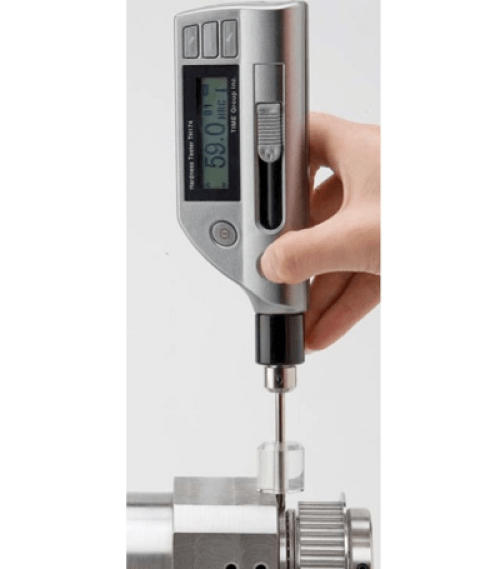

The TH-174 with integrated DL-type Impact device and long nose, carry over the same advanced features and ergonomic design of the 170-series, but uses a long, needle point type impact device making it suitable for testing difficult to reach, tight locations such as gear teeth and stepped or recessed grooves etc.
This "Standard Complete" kit includes adds reference calibration hardness test block and hard carry case to standard kit items.
Standard kit comes with a pocket sized carrying case and incorporates a hardness impact probe, microprocessor and data display in a single, compact unit.
TH-174 provides exceptional reliability for a wide measuring range, and is capable of automatically converting and displaying measurements into Brinell, Rockwell, Leebs, Vickers and Shore hardness values.
Conforming to ASTM A956 standard, the TH-174 Portable hardness tester covers an extensive range of applications in the industry and supply the required test results, in almost every application, where bench-top hardness testers can not be used. As a result of following the Leebs rebound principle, the minimum requirements that have to be met in order to achieve accuracy with TH174, are minimum thickness of 3/8" (10mm) and weight of 11lb (5kg) for the samples. If your samples are thin or light-weight, you may consider our TH-172 portable hardness Tester.
Main Features:
• USB communication interface
• Automatic identification of Impact test direction
• Memory of 270 average data in 9 group files
• Upper and lower limit setting
• Automatic switch off
• Backlight for convenient use in darkness
• Software calibration
• Battery capacity display
• AAA 1.5V battery
• DataView software available
Range of Applications:
• Hardness testing of large and heavy objects
• In production line of mass produced components
• Materials identification in stores and warehouses
• In locations with difficult access, or in confined spaces
Technical Data:
• Measuring accuracy: +/- 0.5%
• Impact device: Universal DL device - Integrated
• Hardness measurement values include HLD, HRC, HRB, HB, HV, and HS
• Automatic calculation of average and mean test values
• Storage capacity: 270 average readings in 9 group files
• USB 2.0 interface
• Impact direction: 360°
• Minimum Surface Roughness of Sample: 1.6µm ( Ra)
• Maximum workpiece hardness: 955HV
• Min. radius of Workpiece
• (convex/concave) Rmin = 50mm (with support ring Rmin= 10mm)
• Minimum sample weight: 2~5kg on solid support
• Continuous working time: 150 h (without backlight)
• Power: AAA 1.5V batteries (2pcs)
• Operating Temperature: 0~40° C
• Impact energy: 8 ft-lbs (11Nmm)
• Test tip: Tungsten Carbide
• Dimensions: 155mm×55mm×25mm
• Weight: 166 g
Standard Configuration:
• Processor integrated with impact device DL
• Battery
• Support ring
• Cleaning brush
• Soft Carrying case
• Certificate
This "Standard Complete" kit includes adds reference calibration hardness test block and hard carry case to standard kit items.
Standard kit comes with a pocket sized carrying case and incorporates a hardness impact probe, microprocessor and data display in a single, compact unit.
TH-174 provides exceptional reliability for a wide measuring range, and is capable of automatically converting and displaying measurements into Brinell, Rockwell, Leebs, Vickers and Shore hardness values.
Conforming to ASTM A956 standard, the TH-174 Portable hardness tester covers an extensive range of applications in the industry and supply the required test results, in almost every application, where bench-top hardness testers can not be used. As a result of following the Leebs rebound principle, the minimum requirements that have to be met in order to achieve accuracy with TH174, are minimum thickness of 3/8" (10mm) and weight of 11lb (5kg) for the samples. If your samples are thin or light-weight, you may consider our TH-172 portable hardness Tester.
Main Features:
• USB communication interface
• Automatic identification of Impact test direction
• Memory of 270 average data in 9 group files
• Upper and lower limit setting
• Automatic switch off
• Backlight for convenient use in darkness
• Software calibration
• Battery capacity display
• AAA 1.5V battery
• DataView software available
Range of Applications:
• Hardness testing of large and heavy objects
• In production line of mass produced components
• Materials identification in stores and warehouses
• In locations with difficult access, or in confined spaces
Technical Data:
• Measuring accuracy: +/- 0.5%
• Impact device: Universal DL device - Integrated
• Hardness measurement values include HLD, HRC, HRB, HB, HV, and HS
• Automatic calculation of average and mean test values
• Storage capacity: 270 average readings in 9 group files
• USB 2.0 interface
• Impact direction: 360°
• Minimum Surface Roughness of Sample: 1.6µm ( Ra)
• Maximum workpiece hardness: 955HV
• Min. radius of Workpiece
• (convex/concave) Rmin = 50mm (with support ring Rmin= 10mm)
• Minimum sample weight: 2~5kg on solid support
• Continuous working time: 150 h (without backlight)
• Power: AAA 1.5V batteries (2pcs)
• Operating Temperature: 0~40° C
• Impact energy: 8 ft-lbs (11Nmm)
• Test tip: Tungsten Carbide
• Dimensions: 155mm×55mm×25mm
• Weight: 166 g
Standard Configuration:
• Processor integrated with impact device DL
• Battery
• Support ring
• Cleaning brush
• Soft Carrying case
• Certificate
