TH-172 Portable Hardness Tester Complete Kit - TH-172C
TH-172 Portable Hardness Tester Complete Kit - TH-172C
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

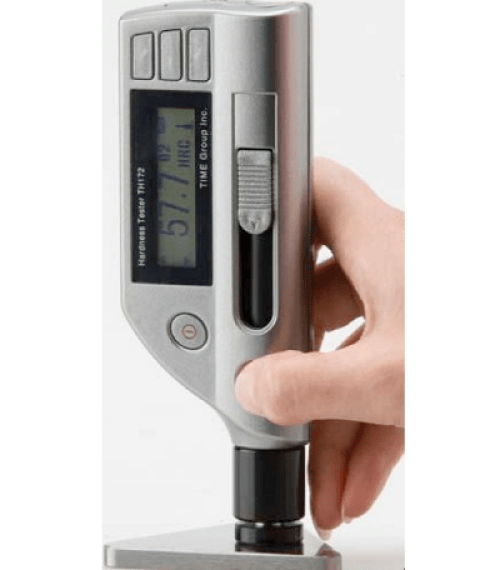

TH-172 Portable Hardness Tester Complete Kit
Regular price
$2,199.10 AUD
+ GST
$2,419.01 AUD Inc. GST
$2,419.01 AUD Inc. GST
TH-172 with integrated Universal C-type Impact device, carries over the same ergonomic design and advanced features of the 170-series, but uses a light impact device and test force making it suitable for use on thinner, light weight test samples (<5mm and <5Kg) such as aluminium.
This "Standard Complete" kit includes adds reference calibration hardness test block and hard carry case to standard kit items.
It provides exceptional reliability for a wide measuring range, and is capable of automatically converting and displaying measurements into Brinell, Rockwell, Leebs, Vickers and Shore hardness values.
Main Features:
USB communication interface
Automatic identification of Impact test direction
Memory of 270 average data in 9 group files
Upper and lower limit setting
Automatic switch off
Backlight for convenient use in darkness
Software calibration
Battery capacity display
AAA 1.5V battery
DataView software available
Range of Applications:
Hardness testing of large and heavy objects
In production line of mass produced components
Materials identification in stores and warehouses
In locations with difficult access, or in confined spaces
Technical Data:
Measuring accuracy: +/- 0.5%
Impact device: Universal C device - Integrated
Hardness measurement values include HLD, HRC, HRB, HB, HV, and HS
Automatic calculation of average and mean test values
Storage capacity: 270 average readings in 9 group files
USB 2.0 interface
Impact direction: 360
Minimum Surface Roughness of Sample: 1.6m ( Ra)
Maximum workpiece hardness: 955HV
Min. radius of Workpiece
(convex/concave) Rmin = 50mm (with support ring Rmin= 10mm)
Minimum sample weight: 2~5kg on solid support
Continuous working time: 150 h (without backlight)
Power: AAA 1.5V batteries (2pcs)
Operating Temperature: 0~40 C
Impact energy: 8 ft-lbs (11Nmm)
Test tip: Tungsten Carbide
Dimensions: 155mm55mm25mm
Weight: 166 g
Standard Configuration:
Processor integrated with impact device C
Batteries (2 x AAA) included
Support ring
Cleaning brush
Soft Carrying case
Certificate
This "Standard Complete" kit includes adds reference calibration hardness test block and hard carry case to standard kit items.
It provides exceptional reliability for a wide measuring range, and is capable of automatically converting and displaying measurements into Brinell, Rockwell, Leebs, Vickers and Shore hardness values.
Main Features:
USB communication interface
Automatic identification of Impact test direction
Memory of 270 average data in 9 group files
Upper and lower limit setting
Automatic switch off
Backlight for convenient use in darkness
Software calibration
Battery capacity display
AAA 1.5V battery
DataView software available
Range of Applications:
Hardness testing of large and heavy objects
In production line of mass produced components
Materials identification in stores and warehouses
In locations with difficult access, or in confined spaces
Technical Data:
Measuring accuracy: +/- 0.5%
Impact device: Universal C device - Integrated
Hardness measurement values include HLD, HRC, HRB, HB, HV, and HS
Automatic calculation of average and mean test values
Storage capacity: 270 average readings in 9 group files
USB 2.0 interface
Impact direction: 360
Minimum Surface Roughness of Sample: 1.6m ( Ra)
Maximum workpiece hardness: 955HV
Min. radius of Workpiece
(convex/concave) Rmin = 50mm (with support ring Rmin= 10mm)
Minimum sample weight: 2~5kg on solid support
Continuous working time: 150 h (without backlight)
Power: AAA 1.5V batteries (2pcs)
Operating Temperature: 0~40 C
Impact energy: 8 ft-lbs (11Nmm)
Test tip: Tungsten Carbide
Dimensions: 155mm55mm25mm
Weight: 166 g
Standard Configuration:
Processor integrated with impact device C
Batteries (2 x AAA) included
Support ring
Cleaning brush
Soft Carrying case
Certificate
