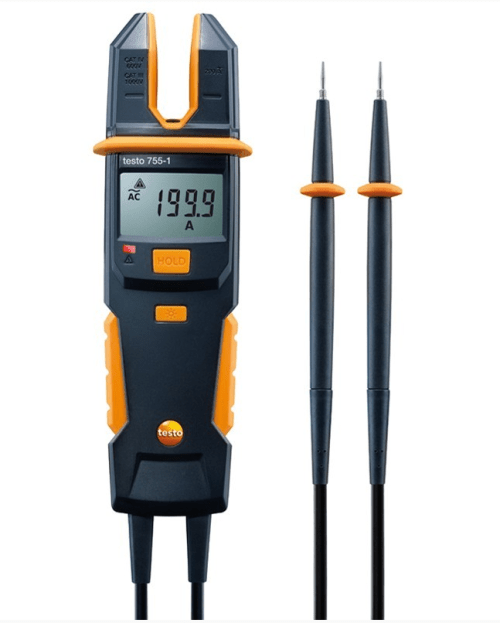

Testo 755-1 current/voltage tester

3 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 5th Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: IC-0590-7551
The testo 755 automatically detects testing in-process and selects correct meter configuration which saves time and optimizes accuracy. Features include polarity detection for DC circuits, 3-phase sequence check with motor rotation indication and single lead voltage test with audible indication.

Read more | Need help?

$351.00 AUD + GST
 $386.10 AUD Inc. GST

USP's

  • Easy, reliable operation through automatic measurement parameter detection
  • Suitable for almost all electrical measuring tasks
  • Exchangeable measuring tips
  • DIN EN 61243-3:2010 certified
  • Measuring current with a voltage tester? The innovative testo 755-1 makes this possible and is therefore suitable for virtually all daily electrical measuring tasks. The practical automated switch-on function and automatic measurement parameter detection also mean you can work more reliably than ever before with it.

Product Video - https://www.youtube.com/watch?v=HbOU08u5bJg

Product Description

The first voltage tester with current measurement is here: the testo 755-1. You can test electrical circuits or systems for voltage or de-energization, measure flow of current or current consumption and carry out continuity tests using a single instrument. In the process, the testo 755-1 voltage tester detects and selects all the electrical parameters automatically: you can just start measuring without any switching on or selection.

The measuring tips, which can be quickly and simply exchanged, are also particularly user-friendly. This means you do not need to replace the whole instrument straight away in the event of damage. Just as practical: the integrated torch for illuminating dark measuring points.

The testo 755-1 current/voltage tester is a genuine allrounder which will make your day-to-day work easier.

Delivery Scope

Testo 755-1 current/voltage tester, including batteries, measuring tips and measuring tip caps.

Specifications


DC Voltage:

- Measuring Range: 6 to 600 V
- Resolution: 0.1 V
- Accuracy: +/- (1.5 % of mv + 3 Digit)

AC Voltage:
- Measuring Range: 6 to 600 V
- Resolution: 0.1 V
- Accuracy: +/- (1.5 % of mv + 3 Digit)

AC Current:

- Measuring Range: 0.1 to 200 A
- Resolution: 0.1 A
- Accuracy: +/- (3 % of mv + 3 Digit)

Resistance:

- Measuring Range: 30 Ohm to 100 kOhm
- Resolution: 1 Ohm
- Accuracy: +/- (1 % of mv + 5 Digit)
General technical data:
- Display type: LCD
- Display size: one line
- Display lightning: Ano
- Operating temperature: -10 to +50 C
- Protection class: IP64
- Battery type: 3 x AAA
- Storage temperature: -15 to +60 C
- Overvoltage Category: CAT IV 600V; CAT III 1000V
- Authorizations: TUV; GS; CSA; CE
- Weight: 320 g
- Dimensions: 199 x 62 x 40 mm

Measurement functions:
- Continuity testing
- Display ligthing
- Hold
- Measuring point illumination
- Display (counts)
- Autom. measurement parameter detection
