Testo

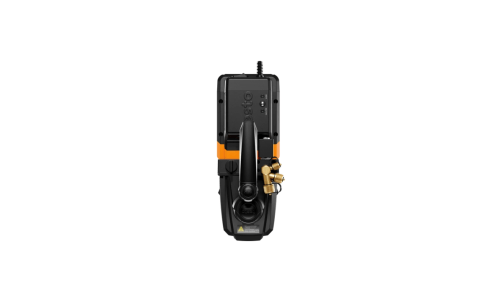

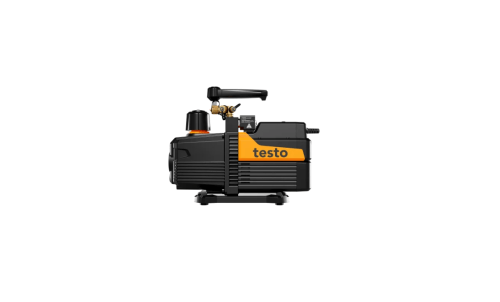

Testo 565i - Smart Vacuum Pump, 7 CFM (198 l/min) - IC-0564-5652-04

23 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 13th Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: IC-0564-5652-04
The testo 565i is a smart vacuum pump for automated evacuations with integrated hold test, 7 CFM (198 l/min).

  • Fully automated evacuation process with integrated holding test when used in combination with the testo 552i vacuum probe.
  • Can be safely used even with flammable class A3 and A2L refrigerants.
  • Perfect interaction between workflows thanks to full connectivity to the entire Testo refrigeration portfolio and configure and monitor measurements with the testo Smart App.

Read more

$939.00 AUD + GST
 $1,032.90 AUD Inc. GST
The new testo 565i vacuum pump performs refrigeration system and heat pump evacuations completely automatically. Once the desired vacuum target value is reached, pumping is automatically stopped and a vacuum hold test is initiated at the same time. Foreign gases and moisture can thus be removed safely, and data relating to the system's leak-tightness stored.
The data logging function ensures complete documentation. This allows evacuations to run completely independently - for maximum accuracy and efficiency. Configuration, monitoring of live readings and sending of the measurement report are all easily controlled via the free testo Smart App. This allows you to remain flexible and saves valuable time.
Maximum convenience is guaranteed by the simple oil change mechanism and the sight glass for quick assessment of the oil level, along with the ergonomic handle.
To ensure high reliability, the built-in non-return valve provides effective protection against loss of vacuum, even in the event of unexpected power failures, and offers an extra layer of safety for uninterrupted operation.

Specifications

- Weight: 13 kg
- Operating temperature: 5 to 40 C
- Standards: Oil compatibility: ISO VG 46
- Connection: 1/4 SAE, 3/8 SAE,1/2 SAE
- Interface: Bluetooth 5.0
- Radio range: 30 m
- Ultimate vacuum: 15 micron
- Pump type: Rotary vane pump, two-stage
- Flow rate: 7 CFM / 198 l/min
Includes:
- Testo 565i Smart Vacuum Pump
- Oil bottle
- Calibration protocol and instruction manual
