testo 312-4 - Differential pressure measuring instrument up to 200 hPa

DISCONTINUED
Product code: IC-0632-0327

Unfortunately, the 0632 0327 has been discontinued, please check out our other Pressure Gauges for more options or please call 130 737 871 to discuss alternatives.

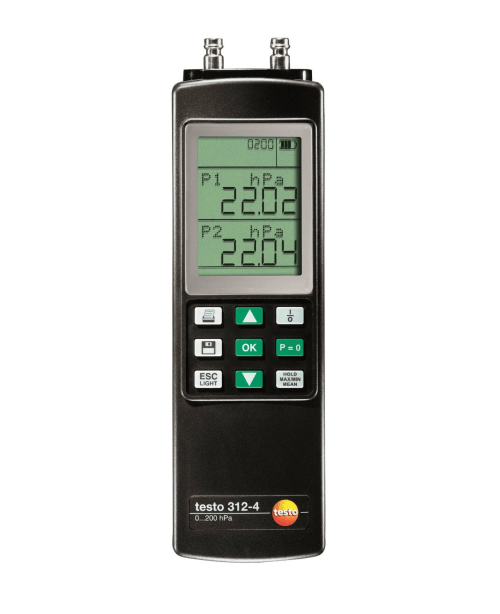

Differential pressure gauge testo 312-4.

Read more

Unfortunately, the 0632 0327 has been discontinued, please check out our other Pressure Gauges for more options or please call 130 737 871 to discuss alternatives.

A measuring instrument for carrying out all necessary tests on gas heaters and pipes as well as water pipes. Inherently safe thanks to the use of C-Flex hoses with high impermeability. Legally compliant measurement procedure for pre-test, main test and leakage quantity measurement on gas pipes. Recording of measurement values over a defined period (e.g. 24 h) and data transfer and analysis on PC software incl. graphic presentation.

Features:

- Tightness testing and load testing on gas pipes
- Serviceability testing with air by pressure drop on gas pipes
- Pressure testing on drinking water and waste water pipes using air
- Automatic recording of measuring values over several hours

Specifications


Temperature - Type K TC:

- Measuring range: dependent on probe type used
- Accuracy: +/- 0 0.7 F (-148 to 392 F)* / +/- 0.4 C (-100 to +200 C)*/ +/- 2 F (Remaining Range)* / +/- 1 C (Remaining Range)*
- Resolution: 0.01 F t1 / 0.01 C

Differential pressure (internal sensor):

- Measuring range: 0 to 80 InH?O / 0 to 200 hPa
- Accuracy: +/- 0.01 InH2O (0 to +1 InH?O) / +/- 0.03 hPa (0 to +3 hPa)/+/- 1.5 % of mv (+1.2 to +16 InH?O) / +/- 1.5 % of mv (+3.1 to +40 hPa)/ +/- 1 InH2O or +/- 1 % of full-scale value (16 to +80 InH?O) / +/- 2 hPa or +/- 1 % of fsv (41 to +200 hPa)
- Resolution: 0.01 InH?O / 0.01 hPa

Pressure measurement (external probe):

- Measuring range: 0 to 363 psi / 0 to 25 bar
- Accuracy: +/- 0.6 % of full-scale value (0 to 145 psi) / +/- 0.6 % of fsv (0 to 10 bar)/ +/- 0.6 % of full-scale value (>145 to 363 psi) / +/- 0.6 % of fsv (>10 to 25 bar)
- Resolution: 4 InH2O / 10 hPa

General technical data:

- Dimensions: 9 x 3 x 2 in. / 219 x 68 x 50 mm
- Interface printer: Infrared interface
- Data transfer: RS232
- PC software: Easyheat
- Memory: 25,000 measuring values
- Weight: 21 oz. / 600 g

*Accuracy information applies only to instrument without probes connected
