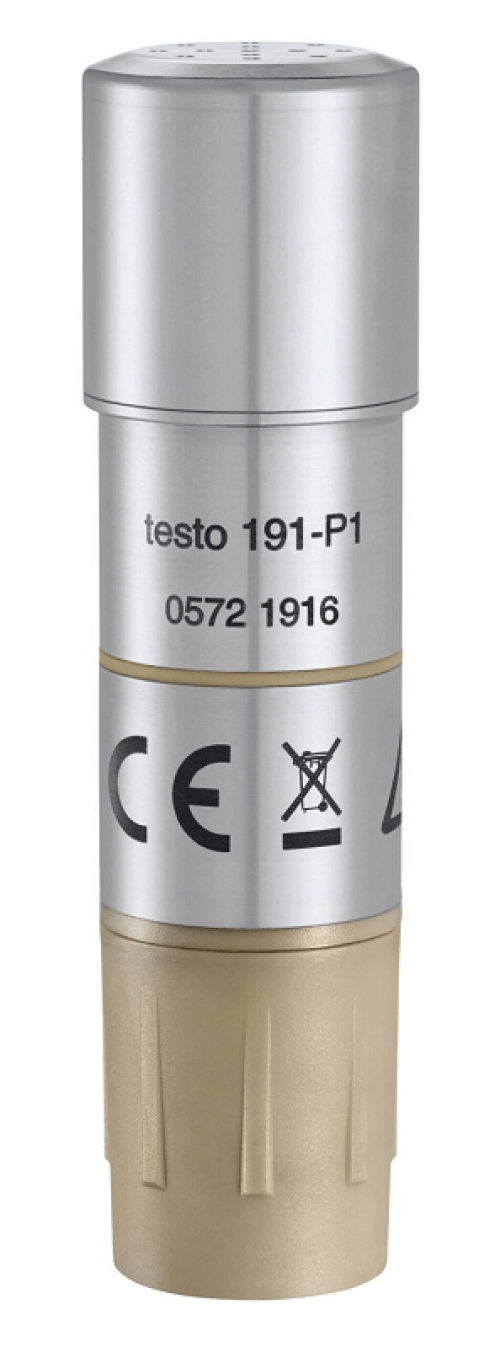

testo 191-P1 - HACCP pressure data logger

ORDER ME IN
Product code: IC-0572-1916

Use the testo 191-P1 HACCP pressure data logger, which is certified by HACCP International, for efficient monitoring of pasteurization and sterilization processes. Designed for food production, the testo 191-P1 is ideally suited for efficient saturated steam pressure testing in pasteurization and sterilization processes.

Read more

Pasteurization and sterilization are key processes in food production when it comes to increasing the shelf life of foods. These processes place extremely high demands on the measuring technology used.
Features:
- High-precision: precise HACCP data logger for monitoring the absolute pressure with reading memory of 60,000 readings
- Small and slim design: with a diameter of 20 mm, the data loggers are ideal for use in tight objects or cramped conditions.
- Robust and durable: high-quality materials and innovative construction make the HACCP data logger particularly robust and durable. Thanks to hermetically sealed measuring technology in a separate stainless steel housing, the HACCP data logger impresses due to its reliability and maximum robustness
- Battery change in seconds: the practical thread enables the battery to be screwed onto the HACCP data logger and changed intuitively and securely without using any tools
- Reliably tight: the HACCP data logger remains 100% tight even after the batteries are changed. The battery housing is coated in highly temperature-proof polyether ether ketone (PEEK)
- Flexible height: the size of the HACCP data logger can vary with two different types of battery. The small battery makes the logger's dimensions particularly compact
Programming, readout and analysis of the data logger
Very practical to use: in addition to being used for storage, the multifunction case (available in two different sizes) can also be used for parallel programming and readout of up to 8 data loggers simultaneously. This means you do not need any additional readout unit and you also save time.
With the specially developed testo 191 professional software (please order separately) you can program and read out the data logger, as well as analyzing the measurement data, on the PC. The clear software structure guides you intuitively through the process step by step. During input, it provides help at critical points through warnings. The software thus enables even inexperienced users to carry out the measurement process easily.

Specifications

Absolute Pressure:
- Measuring range: 1 mbar to 4 bar
- Accuracy: 20 mbar
- Resolution: 1 mbar
- Reaction time: t = 0.2 s
General:
- Dimensions: 22 x 83 ( x height)
- Operating temperature: 0 to 140 C
- Product-/housing material: Stainless steel, PEEK plastic
- Protection class: IP68
- Measuring rate: 1 s to 24 h
- Channels: 1
- Authorizations: CE
- Battery type: 1/2 AA lithium
- Battery life: 2,500 operating hours (measuring cycle 10 sec at +121 C)
- Interface: USB
- Memory: 60,000 measuring values
- Storage temperature: -20 to +50 C
Delivery Scope:
1 x testo 191-P1 HACCP data logger, including battery large, calibration protocol and instruction manual.
