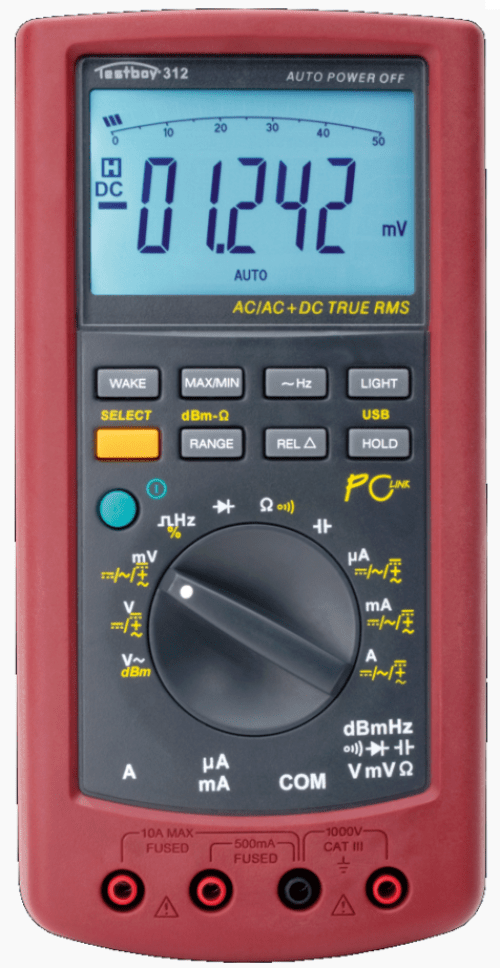

Testboy 312 Digital multimeter with USB interface - IC-TB312

ORDER ME IN
Product code: IC-TB312

Order Me In, Once ordered this item will likely dispatch before the 31st of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The Testboy 312 is equipped with extremely effective measuring procedure prevents measuring errors in the case of non-sinusoidal or non-linear curves. In addition, it also has important functions, such as relative, Min/Max and frequency measurement and a USB interface, through which all measurement results can be evaluated, using Windows software.

Read more

$662.00 AUD + GST
 $728.20 AUD Inc. GST

Features:

• Large LCD with bar chart display
• True RMS
• USB interface

Specifications



• Display: 44 mm large, illuminated LCD, 4 ¾ digit
• Overload Category: CAT III 1000 V
• Diode Test: Forward voltage in mV
• Standard: IEC/EN 61010-1, IEC/EN 61010-2-033
• Data hold: Yes
• Dimensions: 200 x 100 x 40 mm
• AC Voltage: 50 mV, 500 mV, 50 V, 500 V, 1000 V ; ± 0,5 %
• AC Current: 500 μA, 5 mA, 500 mA, 5 A, 10 A ; ± 1,5 %
• Auto power-off function: 15 minutes
• DC Voltage: 50 mV, 500 mV, 50 V, 500 V, 1000 V ; ± 0,5 %
• DC Current: 500 μ, 5 m, 500 m, 5, 10 A ; ± 0,5 %
• Continuity Test: With acoustic signal
• Duty Cycle: 5 Hz–500 kHz, 1–99 %
• Capacity: Up to 5000 μF
• Linear Frequency: 10 Hz – 200 kHz ± 0.006%, Vpp 10 mV sensitive
• Logic Frequency: 5 Hz – 5 MHz ± 0.006%, Vpp 2 – 5 V rectangular
• PC interface: USB interface with Windows software
• Resistance: 500 Ω, 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ ; ± 0,1 %/50 MΩ ; ± 0,5 %
• Ranging: Automatic and manual
• Dimension: 200 x 100 x 40 mm
