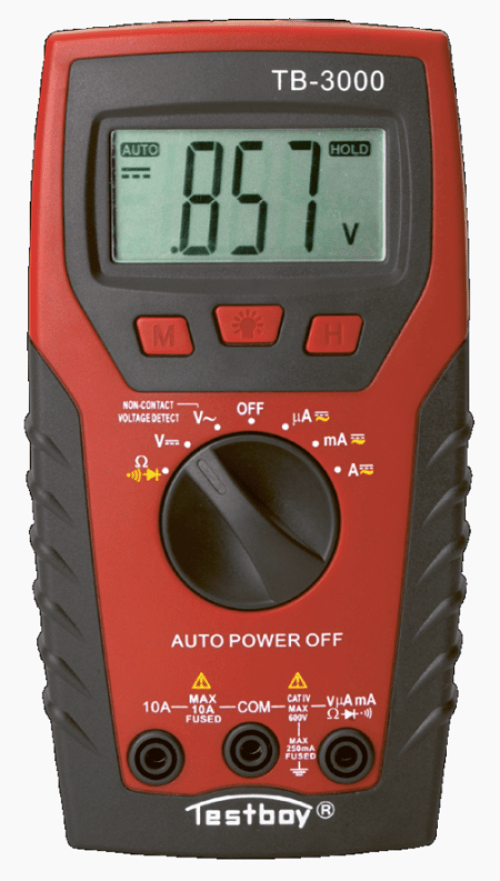

Testboy 3000 Digital multimeter CAT IV - IC-TB3000
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 29th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The Testboy 3000 is built with latest technology and equipped with superior measuring procedures that ensure rapid and accurate measurements and a variety of features for different tasks and purposes. The Testboy 3000 is also made using durable, ABS casing, making it a robust instrument that can meet the demands of any work place.
Regular price
$249.00 AUD
+ GST
$273.90 AUD Inc. GST
$273.90 AUD Inc. GST
• ABS housing, resistant to breakage and impacts
• Non-contact cable break detector
• LED torch
• Auto range
Specifications
• Overload Category: CAT IV 600 V
• Diode Test: Test current 0.6 mA
• Off-load voltage typ. 1.5 V
• Standard: IEC/EN 61010-1, IEC/EN 61010-2-033
• Dimensions: 165 × 85 × 32 mm
• AC Voltage: 2 V, 20 V ; ±1,5 %, ±5 Digits/200 V, 600 V ; ±1,5 %, ±5 Digits
• AC Current: 200 μA, 2000 μA ; ±1,3 %, ±5 Digits/10 A ; ±1,5 %, ±8 Digits
• Auto power-off function: 15 minutes
• Non-contact voltage test: 100–600 V AC (optical and acoustic)
• Operating temperature range: 0 – 40 °C (32 – 104 °F)
• DC Voltage: 200 mV ; ±0,5 %, ±3 Digits/2 V, 20 V, 200 V, 600 V ; ±0,8 %, ±5 Digits
• DC Current: 200 μA, 2000 μA ; ±1,0 %, ±3 Digits/10 A ; ±1,2 %, ±5 Digits
• Continuity Test: Audible signal if resistance < 50 Ω
• Input impedance: > 7.5 MΩ, typ 10 MΩ (AC V & DC V)
• Storage temperature range: -10 – 50 °C (14 – 122 °F)
• LED torch: White high-performance LED
• Maximum input voltage: 600 V AC/DC
• AC V bandwidth: 50–400 Hz
• Resistance: 200 Ω ; ±1,0 %, ±5 Digits/2 kΩ, 20 kΩ, 200 kΩ ; ±1,0 %, ±5 Digits/2 MΩ, ±1,0 %, ±5 Digits/20 MΩ ; ±1,8 %, ±5 Digits
