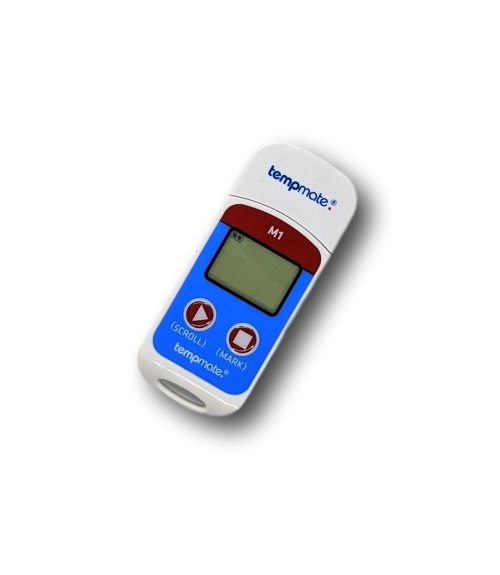

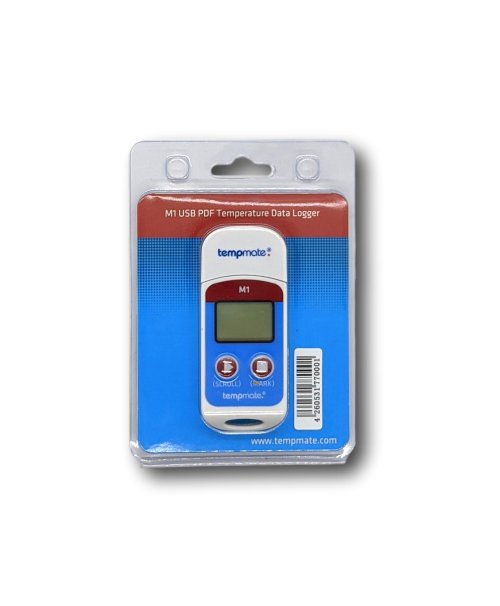

Tempmate Multi-Use Temperature Data Logger.

Tempmate.-M1 data loggers were especially developed for monitoring temperature-sensitive products throughout the entire cold chain. Thanks to customer-specific settings being made directly in our factory, the tempmate.-M1 data loggers are ready for immediate use recording the relevant refrigeration data.

The automatically created PDF report contains extensive information that you can use to assess the goods being monitored: data curve, statistical values such as MIN, MAX, AVG, MKT and every single measurement value shown in table form.

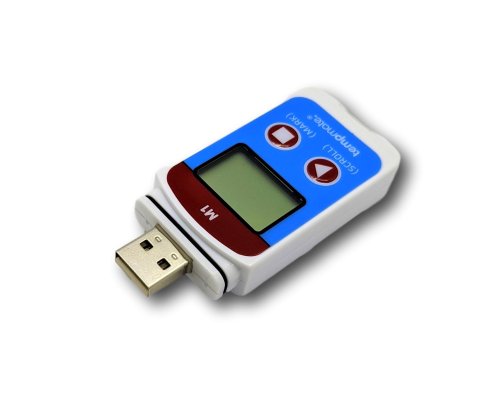

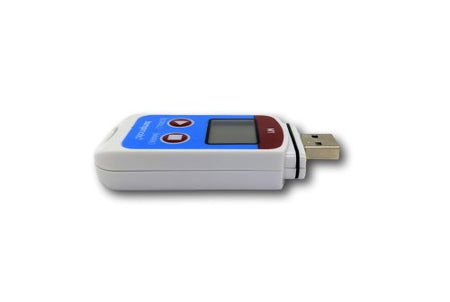

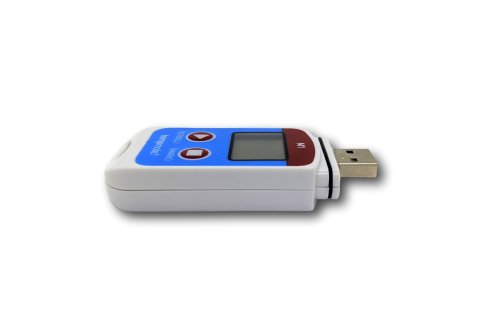

The innovative Multi-Use data logger tempmate.-M1 with integrated USB port is the ultimate data logger for economical temperature monitoring of your stationary refrigerators and transported goods.

For carrying out the analysis, the tempmate.-M1 is connected directly to the USB port. A PDF report is then automatically generated. This shows the temperature profile as well as all individual values plus statistical information. No hardware (such as cables or interfaces) or software required to generate the report.

Features:

- Transparent recording of temperature fluctuations within a cold chain
- Economical and reliable
- Very small and light: can be inserted into virtually any package
- Multi-Use
- No additional software required for analyses
- Detailed analysis with chart and table
- Secure and easy download of encrypted data files
- Display shows the status

Specifications

- Data logger type: Reusable data logger
- Temperature range: -30C to +70C
- Accuracy: +/-0.5C (at -20C to +40C)
- T90: 5min (internal sensor) / 30sec (external sensor)
- Resolution: 0.1C
- Storage capacity: 32,000 measurements

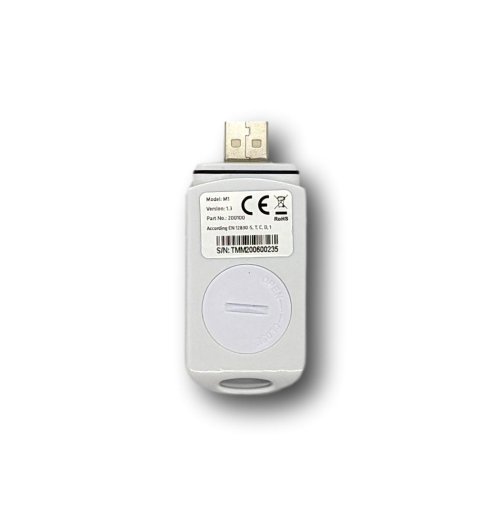

- Battery: CR2032 / Can be replaced by the customer
- Measurement interval: 10 seconds to 24 hours
- Recording time: Freely programmable by the customer / Up to 12 months
- Startup method: Manually at the touch of a button or automatically at the programmed startup time
- Alarm type: Individual or cumulative alarm
- Protection class: IP67
- Dimensions: 79 mm x 33 mm x 14 mm [L x W x H]
- Weight: Approx 25g

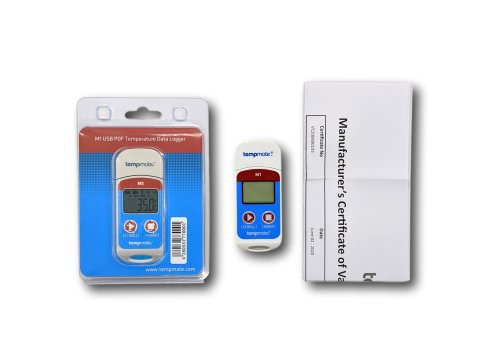

- Certified: EN12830, validation certificate, CE, RoHS
- Software: PDF reader
- Auto PDF report: Yes
- PC connection: USB 2.0, Type A
