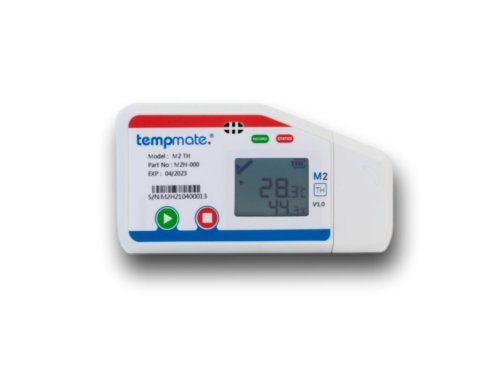

Tempmate M2TH Multi Use Temperature and Humidity Data Logger

ORDER ME IN
Product code: TEMPMATE-M2TH

Multi-use data logger for monitoring temperature and humidity with -30 C to +70 C and 0 to 100%rH measurement ranges.

-Set up to 6 alarm triggers to monitor the environment of your goods and to detect risks during transit.

-Automatic PDF and CSV report generation.

-Easily view different parameters such as current temperature and humidity, logs made, maximum and minimum temperature, etc. in the LCD.

Read more

The tempmate.-M2TH offers you many possibilities to quickly detect if your goods have been exposed to wrong environmental and physical influences. By setting up to 6 alarm limit values adapted to your goods, you can detect risks in time. 2 LEDs provide immediate information about the condition of your goods and the integrated LCD shows you detailed information about the current conditions.
Often the purchase price alone is not the only thing you need to consider when implementing data loggers into your daily operations. The tempmate.-M2TH does not require any accessories and can be configured by yourself with free software if required. With this solution, you will not incur any license fees or hidden costs. The easy handling saves you time and staffing costs.
The exchangeable battery makes the tempmate.-M2TH a permanent companion when it comes to monitoring your goods. By simply turning the cap on the back of the device, the standard CR2450 button cell battery of the tempmate.-M2TH can be easily replaced with a new one. This is not only good for the environment, it is also good for your finances, as frequent replacements are no longer a problem for you.
Only one button is needed to operate the tempmate.-M2TH - everything else happens almost by itself. A PDF & CSV with your important data is automatically created when the device is stopped. It can be easily analyzed and archived via the built-in USB interface.
The tempmate.-M2TH not only offers high-quality sensor technology, but also a backup log that prevents your important data from being lost. Together with password protection, you get a device that not only reliably records your data, but also protects it from loss and misuse. Finally, the environmentally friendly hard case makes the tempmate.-M2 a robust companion for your goods and a protector of your data.

Specifications

- Temperature Sensor: HQ Digital Temperature sensor (internal)
- Temperature Range: -30 to +70 C
- Temperature Accuracy: +/- 0.3 C (at 20 C to + 40 C, other 0.5 C)
- Temperature Resolution: 0.1 C
- Humidity Sensor: HQ Digital Temperature/rel. Humidity sensor
- Humidity Range: 0%rH to 100%rH
- Humidity Accuracy: +/- 3%rH (20 to 80%rH), 5% others (at 25 C)
- Humidity Resolution: 0.1%rH
- Data Storage: 60,000 values
- Display: Big Multifunction LCD
- Start Setting: Manually by pressing button, by software or timed
- Recording Time: Up to 6 months
- Interval: 10sec. up to 11h 59min. (default 10 min.)
- Alarm Settings: Up to 6 points customizable
- Alarm Type: Single alarm or cumulative
- Battery: CR2450 / replaceable by customer
- Dimensions: 100 x 53 x 12 mm
- Weight: 54g
- Protection Class: IP65
- Connection Interface: USB 2.0, A-Type
- Conformity: EN 12830, CE, RoHS
- Software: PDF or CSV reader or tempbase 2 software / free download
- Interface to PC: Integrated USB port
- Reprogrammable: Yes, with internal HTML tool* or optional tempbase 2 Software
- Automatic Reporting: PDF & CSV
