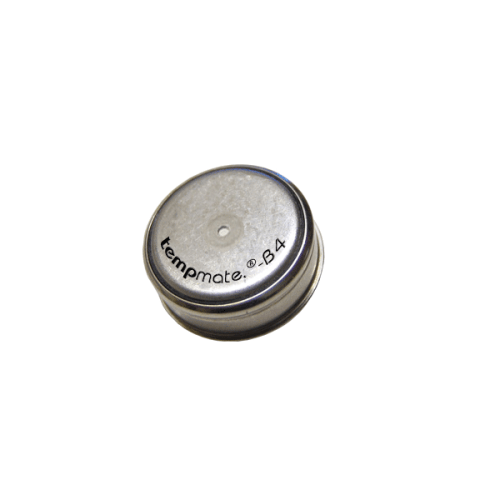

Tempmate B4 Miniature Temperature and Humidity Data loggers with 3-point calibration. Minimum order of 10 units.
Unfortunately, the 100541 has been discontinued, check out our other Temperature Loggers for more options.
The tempmate.-B4 mini data loggers can record up to 4,096 temperature and humidity measurements. The temperature range spans -20°C to +85°C, with an accuracy rate of up to ±0.5°C (temperature) and 5% (humidity). Calibrated at 80°C, +100°C, and +120°C and 11%, 40%, 75%. Minimum order of 10 units.
Each tempmate.-B4 mini data logger can record up to 4,096 temperature and humidity measurements. The temperature range spans -20 C to +85 C, with an accuracy rate of up to +- 0.5 C (temperature) and 5% (humidity). The software also shows dew point and absolute humidity. Thanks to its extremely compact construction (about the size of a watch battery), the logger is extremely versatile.
The logger is connected to the PC via the separately available USB adapter, and is programmed, read and analysed with the aid of the user-friendly TempIT software. The TempIT-Lite software offers a graphical display and can be downloaded here, free of charge.
Specifications
- Measurement range (Temperature): -20 C to +85 C
- Measurement range (Humidity): 0% RH to 100% RH
- Accuracy (Temperature): +- 0.5 C at -10 C to +70 C
- Accuracy (Humidity): +- 5% RH
- Calibration: 80 C, 100 C, and 120 C and 11%, 40%, 75%
- Resolution: 0.5 C (8-bit)/0.07 C (11-bit)
- Storage capacity: 8,192 measurements (8-bit) (4,096 temperature and 4,096 humidity)/4,096 measurements (11-bit) (2,048 temperature and 2,048 humidity)
- Protection class: IP55 (splashwaterproof); Housing for higher protection classes is available
- Power supply: Internal, fixed 3.0V lithium battery
- Battery life: approx 5 years at +30 C and 10 minute sampling rate.
- Measurement interval: 2 seconds to 24 hours
- Start delay: Max 12 months at 1 minute measurement frequency
- Housing material: 305SS stainless steel
- Guarantee: 1 year
- Dimensions: Diameter = 17mm x H = 6mm
- Response time: approx 90 seconds in the air
- Weight: 4g
- EX zone suitability: Meets UL#913 (4th Edit), Intrinsically Safe Apparatus, approval under Entity Concept for use in Class I, Division I, Group A,
B, C and D Locations
- Clock accuracy: +- 2 minutes per month
- Recording modes: Circular buffer or stop when full
- Alarm thresholds: Min/max freely configurable
- Owner identification: Max 32 characters
- User identification: Max 64 characters
