Tempmate B3 Miniature Temperature Data logger with 3-point calibration. Minimum order of 10 units.

DISCONTINUED
Product code: IC-100531

Unfortunately, the Tempmate B5 has been discontinued, check out our other Temperature Loggers for more options.

The tempmate.-B3 mini data loggers can record up to 8,192 temperature measurements. The temperature range spans 0°C to +125°C, with an accuracy rate of up to ±0.5°C. Calibrated at 80°C, +100°C, and +120°C.Minimum order of 10 units.

Read more | Need help? 3 Hour Business Reply

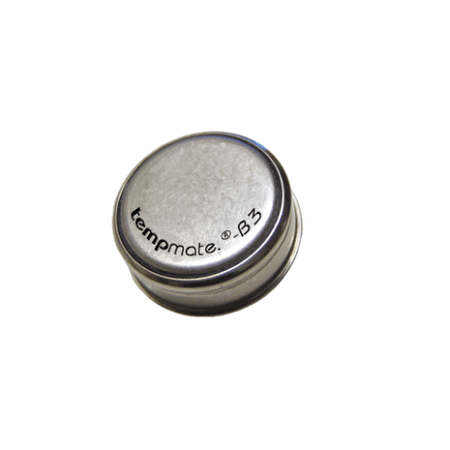

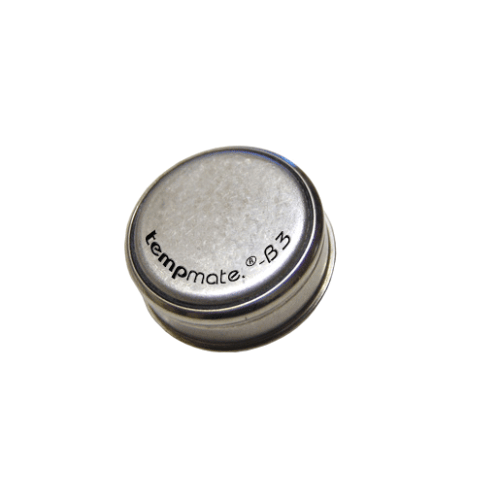

The tempmate.-B3 mini data loggers can record up to 8,192 temperature measurements. The temperature range spans 0 C to +125 C, with an accuracy rate of up to +/- 0.5 C. Thanks to its extremely compact construction (about the size of a watch battery), the logger is extremely versatile.

The logger is connected to the PC via the separately available USB adapter, and is programmed, read and analysed with the aid of the user-friendly TempIT software. The TempIT-Lite software offers a graphical display and can be downloaded here, free of charge.

Specifications

- Measurement range: 0 C to +125 C
- Calibration: 80 C, +100 C and +120 C
- Accuracy: +/- 0.5 C at -20 C to +75 C, otherwise +/- 1.0 C/+/- 1.0 C at 0 C to +20 C/+/- 1.5 C at +115 C to +125 C
- Resolution: 0.5 C (8-bit)/0.07 C (11-bit)
- Storage capacity: 8,192 measurements (8-bit)/4,096 measurements (11-bit)
- Protection class: IP55 (splashwaterproof); Housing for higher protection classes is available
- Power supply: Internal, fixed 3.0V lithium battery
- Battery life: approx 1 year at +80 C and 10 minute sampling rate.
- Measurement interval: 2 seconds to 24 hours
- Start delay: Max 12 months at 1 minute measurement frequency or start upon alarm
- Housing material: 305SS Stainless steel
- Guarantee: 1 year
- Dimensions: Diameter = 17 mm x H = 6 mm
- Response time: approx 90 seconds in the air
- Weight: 4g
- EX zone suitability: Meets UL#913 (4th Edit), Intrinsically Safe Apparatus, approval under Entity Concept for use in Class I, Division I, Group A, B, C and D Locations
- Clock accuracy: +/- 2 minutes per month
- Recording modes: Circular buffer or stop when full
- Alarm thresholds: Min/max freely configurable
- Owner identification: Max 32 characters
- User identification: Max 64 characters
