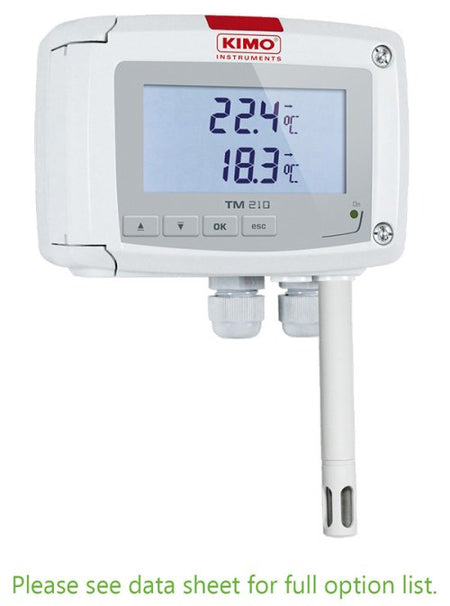

Temperature transmitter - TM210
Backorder Now, once ordered your item will dispatch before the 23rd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$956.34 AUD Inc. GST
- Configurable ranges from 0 to 50 C (ambient model) and from -100 to 400 C (model with terminal block)
- Possibility of a second remote probe on terminal block
- Display of the minimum and maximum values and trend indicator
- 4 wires analogue outputs 0-5/10 V or 0/4-20 mA
- Alimentation 24 Vdc/Vac ou 115/230 Vac
- ABS V0 IP65 housing, with or without display
- turn system mounting with wall-mount plate
Specifications
|
Measuring range |
From 0 to +50 C (ambient model) |
|
Accuracy* |
0.3 % of reading 0.25 C |
|
Type of sensor |
Pt100 1/3 as per DIN IEC751 |
|
Response time |
T90 = 0.9 second for Vair = 1 m/s |
|
Resolution |
0.1 C |
|
Type of fluid |
Air and neutral gas |
*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.
| TM210 | + | Power supply/Output B= 24 Vac/Vdc H= 115 or 230 Vac |
+ | Display O= with display N= without display |
+ | Type of probe S= Ambient + Pt100 on terminal block B= Two Pt100 on terminal block |
Protection : IP65
Display: LCD 19 digits; Size: 75 x 40 mm
Cable gland: for cables 8 mm maximum
