Temperature Management System WiFi - IC-TMS-WiFi
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 21st of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

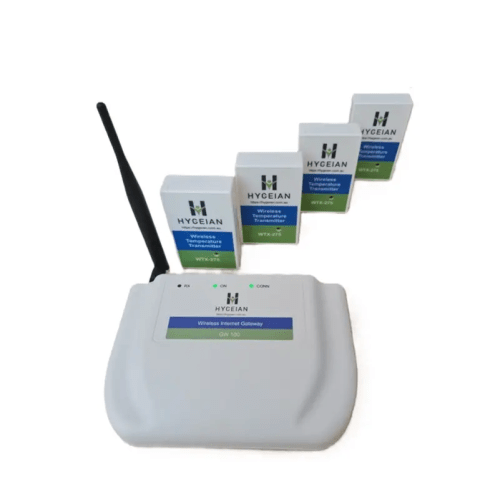

The TMS-WiFi system is comprised of one or more WTX-275 Wireless Temperature Transmitters and a GW-100-WiFi Gateway which carries the data to the Hygeian Server over the internet via on-site WiFi enabled Router. Up to 120 such 915 MHz battery powered wireless temperature sensors can be handled by one GW-100-WiFi gateway.
- Mounts directly into fridges and freezers using internal Class B (+/- 0.3oC) Pt100 sensor.
- Solid construction, suitable for fridges and freezers.
- Very easy to deploy. No tools required.
- Powered by Lithium AAA batteries suitable for freezer temperatures.
Please note: This kit only includes 1 sensor and 1 gateway. Please add additional sensors as required.
Regular price
$888.00 AUD
+ GST
$976.80 AUD Inc. GST
$976.80 AUD Inc. GST
Please note: This kit only includes 1 sensor and 1 gateway. Please add additional sensors as required. The first year of the annual subscription
Note: Additional WTX-275 sensors are available, each sold separately. Up to 120 such 915 MHz battery powered wireless temperature sensors can be handled by one GW-100-WiFi gateway.
Note: The WTX-275-EXT is also available and has an external antenna to increase signal by up to 6dB. Recommended for distance of over 50m in buildings with brick and steel construction.
The TMS-WiFi system is comprised of one or more WTX-275 Wireless Temperature Transmitters and a GW-100-WiFi Gateway which carries the data to the Hygeian Server over the internet via on-site WiFi enabled Router. Up to 120 such 915 MHz battery powered wireless temperature sensors can be handled by one GW-100-WiFi gateway.
WTX-275 Wireless Temperature Transmitter:
The WTX-275is a state of the art 915 MHz wireless temperature transmitter designed for a wide range of applications especially in the food industry. It has been designed to go directly into fridges and freezers as well as having an external jack plug to accept Pt100 sensors. It can be deployed adjacent to the point of measurement where this is required, such as measuring tank temperatures and the temperature of water in pipes.
- Mounts directly into fridges and freezers using internal Class B (+/- 0.3oC) Pt100 sensor.
- Solid construction, suitable for fridges and freezers.
- The WTX-275 mounts in a WTX-RCP magnetic receptacle.
- Very easy to deploy. No tools required.
- Powered by Lithium AAA batteries suitable for freezer temperatures.
- No interruption to work area when deploying these transmitters.
- External jack-plug to accept externally mounted 3 wire Pt100 sensors.
- Internal dipole antenna.
- Works with all GW-100 gateways.
- Distance in building interior: up to 100m.
- Distance in open line of sight: up to 500m.
- Up to 120 WTX series transmitters can operate with one GW100 series gateway.
GW-100-WiFi Gateway with WiFi Internet Connection
The GW-100-WiFi is a gateway that receives the packets from WTX-275s and SPX-100s, collates them, stores them temporarily, constructs a paylad which it uploads to the Hygeian cloud-based server, via the on-site WiFi network.
If any of the packets are set to Immediate mode, they are uploaded immediately. If the packets are all set to Continuous mode, they are collated and uploaded once per minute as a single string.
The GW-100-WiFi connects to the local WiFi network to access the internet. There is an inbuilt mini webserver in the GW-100-WiFi firmware that is accessed through setting up a hot-spot with a specific ID and password. Once the Gateway is accessed, the user can enter the actual WiFi SSID and passphrase and then the GW-100-WiFi will restart and access that WiFi network
The GW-100-WiFi is powered by a 12V plugpack, supplied with the gateway. It has internal lithium batteries that will allow it to contnue operating for up to 9 hours without mains power. So, the GW-100-WiFi will continue to process the packets received and transfer them provided the WiFi router remains connected to the internet. If the router goes offline, the GW-100-WiFi will store the received data packets and transfer them when power is restored.
Please review the demo account below to get a full understanding of the online platform:
