TB4 Series II Tipping Bucket Rain Gauge (0.2 mm)
Backorder Now, once ordered your item will dispatch before the 19th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
High-quality tipping bucket rain gauge for measuring rainfall in urban and rural locations.
- - With Teflon bucket with a capacity of 0.2 mm.
- - Integrated syphon delivers high levels of accuracy.
- - Includes a finger filter to ensure the collecting area is free from debris.
Regular price
$1,058.00 AUD
+ GST
$1,163.80 AUD Inc. GST
$1,163.80 AUD Inc. GST

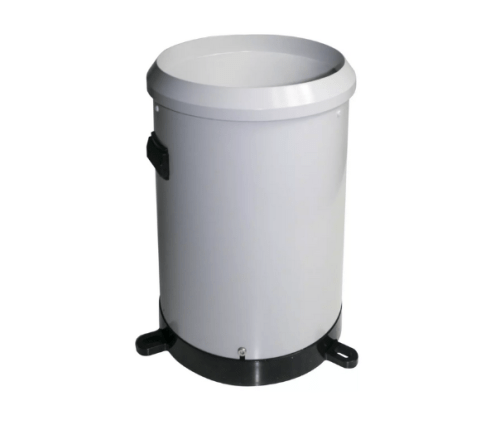

The TB4 Series II is a high-quality tipping bucket rain gauge for measuring rainfall in urban and rural locations. Due to the integrated syphon, the gauge delivers high levels of accuracy across a broad range of rainfall intensities.
The tried and proven design of the TB4 Series II ensures long-term, accurate and repeatable results. It is manufactured from high quality, durable materials ensuring long-term stability in the harshest of environments. It consists of a robust powder-coated aluminium enclosure, a UV-resistant ASA polymer base, a teflon bucket, and stainless steel fasteners and nger lter.
TB4 Series II provides a nger lter that ensures the collector catch area remains unblocked when leaves, bird droppings and other debris nd their way into the catch.
The base incorporates two water outlets at the bottom allowing for water collection and data verication.
Maintenance of the TB4 Series II is easy, because removal of the outer enclosure and access to the tipping bucket mechanism and nger lter assembly is made easy with quick release fasteners. The new more spacious enclosure makes maintenance even easier.
Features:
- Long-term stable calibration
- Accuracy not affected by rainfall intensity
- Minimal maintenance required
- Robust design for all environments
- Expandability: Optional autonomous real-time rain monitoring and reporting system
Specifications
- Measurement ranges: 0 to 700 mm/hr
- Accuracy (0 to 250 mm/hr): +/- 2 %
- Accuracy (250 to 500 mm/hr): +/- 3 %
- Bucket: Teflon impregnated ASA plastic UV stabilised balanced + 0.05gms for 0.2 mm
- Receiver: 200 mm + 0.3 diameter heavy duty cast aluminum, Powder coated for 0.2mm, 0.01, 0.5mm and 1.0mm and 282.84 + 0.3 mm diameter heavy duty cast aluminum, Powder coated for
0.1mm
- Bucket capacity (Plastic): 0.2 mm of rainfall
- Maximum intensity: 700 mm / hr.
- Syphon: 0.4 mm (12ml) capacity of rainfall - made from brass with a non-
hydroscopic outer case. The syphon can be dismantled for routine cleaning and servicing.
- Base: injection molded non-hydroscopic ASA plastic UV stabilized.
- Level: bulls eye level fitted to base.
- Mounting holes: three slots 20mm L x 10mm W equispaced at 244 mm PCD in feet molded to outside diameter of base.
- Drain fittings: to attach 12 mm inside diameter tubing, to catch rainfall after passing through buckets.
- Bucket pivot system: ground Sapphire Pivots with tough 316g stainless steel shaft.
