TB3 Tipping Bucket Rain Gauge (0.1 Titanium)
Backorder Now, once ordered your item will dispatch before the 11th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
High-quality tipping bucket rain gauge for measuring rainfall and precipitation in urban and rural locations.
- Metal Tipping Bucket Rain Gauge-Teflon-impregnated Bucket-0.1 mm.
- Built with an integrated syphon that delivers high levels of accuracy across a broad range of rainfall intensities.
- Consists of a robust powder-coated aluminum enclosure, an aluminum base, and stainless steel finger filter and fasteners.
Regular price
$1,715.00 AUD
+ GST
$1,886.50 AUD Inc. GST
$1,886.50 AUD Inc. GST
The TB3 is a high-quality tipping bucket rain gauge for measuring rainfall and precipitation in urban and rural locations. Due to the integrated syphon, the gauge delivers high levels of accuracy across a broad range of rainfall intensities.
The TB3s tried and proven design ensures long-term, accurate and repeatable results. It is manufactured from high quality, durable materials ensuring long-term stability in the harshest of environments. It consists of a robust powder-coated aluminium enclosure, an aluminium base, and stainless steel nger lter and fasteners.

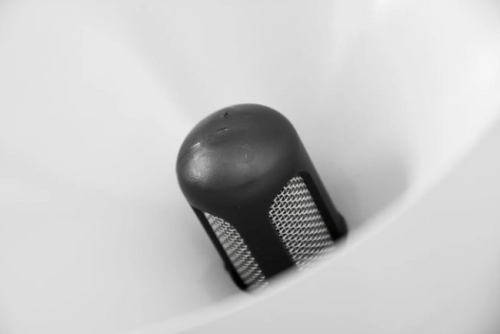

TB3 provides a nger lter that ensures the collector catch area remains unblocked when leaves, bird droppings and other debris nd their way into the catch.

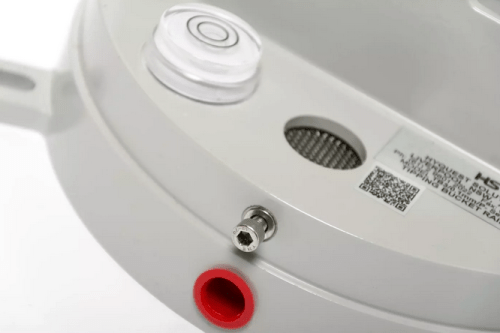

The TB3s base incorporates two water outlets at the bottom allowing for water collection and data verication.

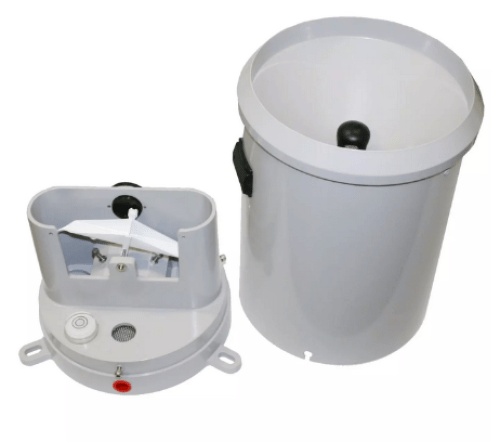

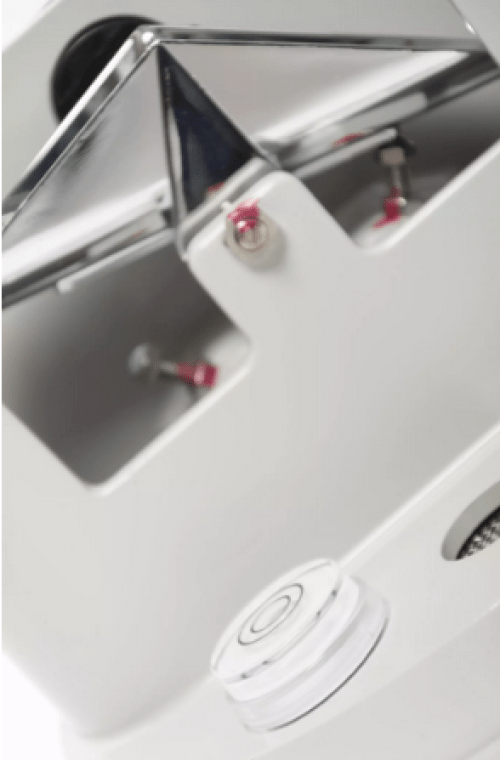

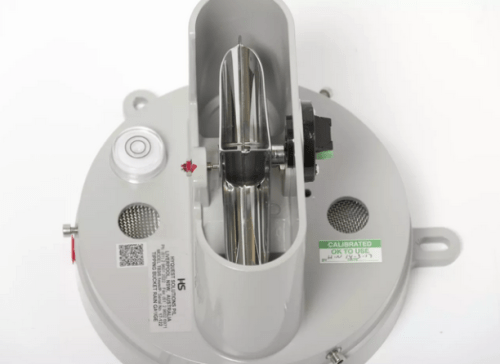

Maintenance of the TB3 is easy, because removal of the outer enclosure and access to the tipping bucket mechanism and nger lter assembly is made easy with quick release fasteners.
Output options:
TB3 includes a dual output 24 V DC reed switch allowing for output redundancy or the addition of a second data logger. The second output could also be used for connecting HyQuest Solutions current meter counter CMCbt paired with the free FCD application that allow for easy and accurate eld calibration even in noisy (urban) environments. The reed switch incorporates varistor protection against surges that may be induced on long, inappropriately shielded signal cables.
Specifications
- Measurement ranges: 0 to 250 mm/hr
- Accuracy (0 to 125 mm/hr): +/- 2 %
- Accuracy (125 to 250 mm/hr): +/- 3 %
- Receiver: 282.2 mm + 0.3 diameter machined aluminium, Powder coated
- Sensitivity: one tip at 0.1 mm of rainfall
- Maximum intensity: 700 mm / hr.
- Humidity: 0 to 100 %
- Temperature: - 20 to +70 C
- Contact system: dual reed switches potted in soft silicon rubber with varistor protection.
- Syphon: 0.19 mm capacity of rainfall - made from brass with a non hydroscopic outer case. The syphon can be dismantled for routine cleaning and servicing.
- Bucket: Two types of buckets, synthetic ceramic coated brass bucket balance
