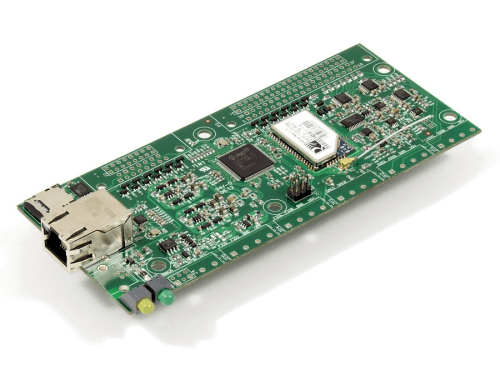

T7-Pro-OEM USB or Ethernet Multifunction Data Acquisition Device (No enclosure/connectors)
T7-Pro-OEM USB or Ethernet Multifunction Data Acquisition Device (No enclosure/connectors)
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 02nd of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
All the features of the T7-Pro, but does not include the connectors, or enclosure. Designed for direct integration into a larger product or platform.
Regular price
$1,439.00 AUD
+ GST
$1,582.90 AUD Inc. GST
$1,582.90 AUD Inc. GST
All the features of the T7-Pro, but does not include the connectors, or enclosure. Designed for direct integration into a larger product or platform.
Analog Input:
- 14 Analog Inputs built in (16-24 Bits Depending on Speed & Device Type)
- Expand to 84 analog inputs with Mux80 add-on
- 24-bit low-speed ADC (resolution as low as 1uV noise-free)
- Software Configurable Resolution Settings
- Single-Ended Inputs (14) or Differential Inputs (7)
- Analog input ranges: +/- 10V, +/- 1V, +/- 0.1V and +/- 0.01V
- All analog input features are software programmable by configuring the Analog Input Registers
- High speed sampling configurable by using Stream Mode. Speeds up to 100kS/s
- Low Latency Sampling and Control (less than 1ms) is made easy with Command-Response Modbus messages
- Easy integration with sensors like thermocouples, load cells, bridges, and more ...
Analog Output:
- 2 analog outputs (12-bit, 0-5V)
- Waveform generation via Stream Out
- Integrated LJTick-DAC support for multiple +/-10V outputs
Digital I/O:
- 23 Digital I/O
- Supports SPI, I2C, and more... (Master Only)
- 5 PWM Outputs with individual phase control
- 5 Pulse Outputs with configurable number, frequency, and width
- 2 Frequency Inputs returning both frequency and period
- 2 Pulse Width Inputs measuring time spent high and low as well as duty cycle
- 2 Line-to-Line Inputs measuring the time between edges on 2 different lines
- 4 High-Speed Counters
- 6 Software Counters with debounce capabilities
- 3 Pairs of Quadrature Inputs
Fixed Current Outputs:
- 200 uA
- 10 uA
Communication Options:
- USB
- Ethernet
- 802.11b/g WiFi
Other Highlights:
- Capable of stand-alone operation by running Lua Scripts
- Built-In CJC Temperature Sensor for easy thermocouple temperature readings
- Watchdog system
- Field Upgradable Firmware
- Programmable Startup Defaults
- Industrial temperature range (-40 to +85 C)
