T-TEC 7-3P Data Loggers for Pt100 Sensor (3 temp ranges) with display
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 04th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

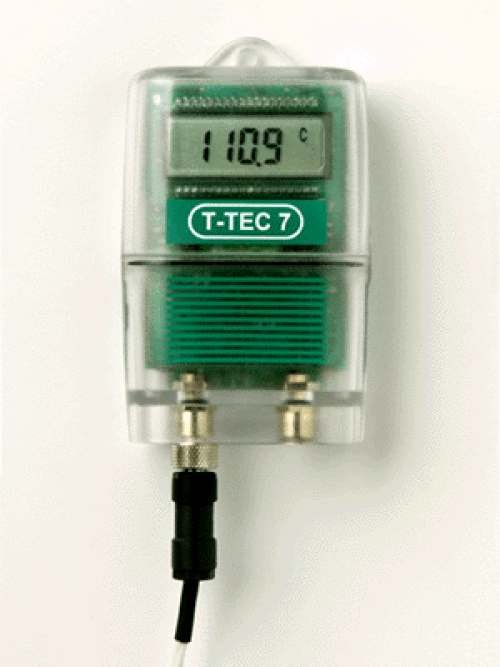

The T-TEC 7-3p is a temperature data logger that accepts Pt100 sensors . With watertight casing and visible alarm settings.
Regular price
$290.00 AUD
+ GST
$319.00 AUD Inc. GST
$319.00 AUD Inc. GST
The T-TEC 7-3p is a temperature data logger that accepts Pt100 sensors . With watertight casing and visible alarm settings. Remote Pt100 sensor offers a wider range of temperatures than thermistor sensors. The two main temperature ranges are from -200 to +120 C and -40 to 300 C.
Features:
- E-Type memory: 20,000+ readings/logs
- Ingress Protection (IP): 68, Dust and water tight, IEC standard 60529
- Visual alarm settings for temperature
- Connection: Connect to source with supplied cable and connector on logger.
- With LCD Display
- Low battery warning
- Logging indicator
- Scalings: Fully scale-able with supplied software: Minimum scale 0/1.00 (or -1.00/0)/Maximum scale to 1999
Specifications
- Measurement range: depends on the chosen sensor type
- Sensor: Pt100 sensor
- Interface: Special interface cable to serial port and/or special interface cable to USB Port
- Memory: 20,000 sets of measurements
- Ambient: -40 + 85 C
- Casing: Polycarbonate, watertight to IP68 Humidity loggers splash proof from top
- Interface: Special interface cable to serial port and/or special interface cable to USB Port
- Resolution (Temperature): Better than 0.1 C
- Security ID: Permanent serial number
- Battery life: 2 years, Low battery warning on display
- Warranty: 1 Year (not incl. sensor)
Pt100 sensor temperature ranges. Each sensor has A, B and C versions
Type A (Internal):
- Range: -200 to + 120 C
- Resolution: 0.2 C
- Accuracy: 200 to 100 C (+/- 2.0 C), -100 to 40 C (+/- 1.0 C), -40 to 120 C (+/- 0.5 C)
Type B (Exposed):
- Range: -40 to 120 C
- Resolution: 0.1 C
- Accuracy: -40 to 120 C (+/- 0.3 C)
Type C (Cord):
- Range: -40 to 280 C
- Resolution: 0.2 C
- Accuracy: -40 to 100 C (+/- 0.4 C), -100 to 200 C (+/- 0.6 C), 200 to 120 C (+/- 1.0 C)
