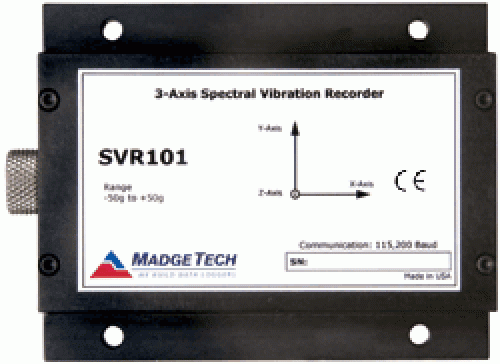

Spectral Vibration Data Logger - SVR101
Unfortunately, the SVR101 has been discontinued and has been replaced by the SVR101.
The SVR101, Spectral Vibration Recorder is a stand alone, battery operated, temperature and 3-axis shock/vibration recorder. It is designed to record time and date stamped temperature and acceleration data for spectral analysis of vibration frequencies and peak acceleration. Measures and calculates real-time spectral data using an FFT (Fast Fourier Transform) from 0 to 63.5Hz with a range of (-50 to +50g). Makes efficient use of built-in memory by recording data when user-defined trigger/threshold levels have been exceeded.
Acceleration Sensor
|
MEMS Semiconductor
|
Acceleration Range
|
50g
|
Acceleration Resolution
|
0.1 g (12 bit)
|
Calibrated Accuracy
|
1g
|
Sample Rate
|
256Hz (decimated~128Hz)
|
FFT Range
|
0~63.5Hz in 0.5Hz bins (significant math errors occur at 0~1.5Hz)
|
FFT Window Period
|
2 seconds
|
FFT Sampling Period
|
2 seconds~7,200 seconds(2 hrs)
|
Temperature Channel
|
Range: -20~+60C; Resolution: 0.1C; Accuracy: 0.5C |
Memory
|
16Mbit(3,800 samples)
|
Sample Rate
|
2 seconds up to 2 hours
|
Required Interface Package
|
IFC200
|
Baud Rate
|
115,200
|
Typical Battery Life
|
48 hours (9V lithium)
|
Operating Environment
|
-20~+60C, 0~95%RH non-condensing
|
Material
|
Anodized aluminium
|
Dimensions
|
89mm x 112mm x 26mm
|
CE Approval
|
Yes
|
Weight
|
340 gms
|
Product Table
Range (g)
|
5
|
50
|
100
|
Accuracy (g)
|
0.2
|
1
|
2
|
Resolution (g)
|
0.01
|
0.03
|
0.05
|
