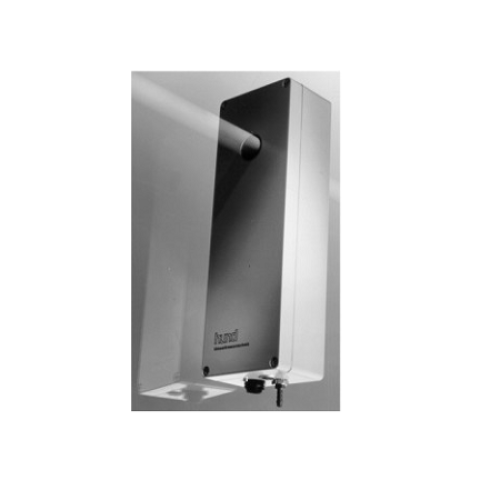

Stationary Scattered-light Photometer - IC-TM-F
Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The scattered-light photometer TM-F is designed for the stationary measurement of lowest mass concentrations of airborne particles. Due to its high sensitivity, it is well suited for the measurement of residual concentrations behind filter systems, as highly sensitive smoke sensor or to measure the concentration of dust in processed air.
Regular price
$8,279.00 AUD
+ GST
$9,106.90 AUD Inc. GST
$9,106.90 AUD Inc. GST
The scattered-light photometer TM-F is designed for the stationary measurement of lowest mass concentrations of airborne particles. Due to its high sensitivity, it is well suited for the measurement of residual concentrations behind filter systems, as highly sensitive smoke sensor or to measure the concentration of dust in processed air.
• Compact and robust design
• Easy to operate
• Low maintenance requirements (no pump)
• Low limit of detection: 5 Ag/m³
• Adjustable limit alert
• Two measurement ranges (2 mg/m³, 20 mg/m³)
• Purge-air connector
Specifications
• Measuring ranges: 0 - 2 mg/m³, 0 - 20 mg/m³, switchable
• Factory calibration with DEHS aerosol, d = 1 Am
• Limit of detection: approx. 5 Ag/m³ (DEHS aerosol, d = 1 Am)
• Limit can be set with potentiometer (0 - 1 00 %)
• Switching output: triggered by limit (230 V AC, 5 A)
• Current output: 4 - 20 mA
• Voltage output: 0 - 3.6 V
• Purge-air connector (particle-, oil- and water-free pressurized air)
• Purge air requirement: D = 2v (D: flow rate in l/min. , v: sample gas velocity in m/s)
• Temperature range during measurement: 5 - 70 °C
• Supply voltage: 230 V AC, 50 Hz, approx. 8 VA
• Degree of protection: IP56
• Dimensions: approx. 320 x 1 20 x 80 mm
