Home > ST4 Dual Temperature Meter
Field Piece

ST4 Dual Temperature Meter

ORDER ME IN
Product code: ST4

Backorder Now, once ordered your item will dispatch before the 04th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

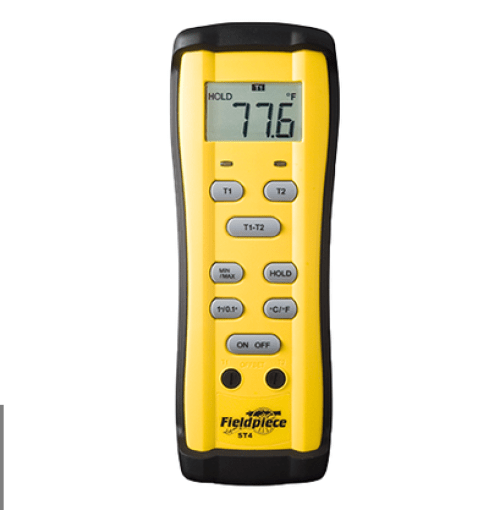

The Fieldpiece Dual-Temperature Meter, model ST4, measures two temperatures simultaneously using the included k-type, wrap tab beaded thermocouples.

-Measures two temperatures simultaneously using the included k-type, wrap tab beaded thermocouples.

-Can be used to measure Delta-T and other temperature splits.

-Displays T1, T2 and T1-T2 .

Read more

$179.90 AUD + GST
 $197.89 AUD Inc. GST
The Fieldpiece Dual-Temperature Meter, model ST4, measures two temperatures simultaneously using the included k-type, wrap tab beaded thermocouples. The technology inside the ST4 provides superior temperature compensation in rapidly changing environments commonly found while performing field service.
Use the ST4 to find Delta T and just about any temperature split you want to measure. Displays T1, T2 and T1-T2 in big numbers on the LCD screen. Features two front face calibration pots and comes in our clear front case with magnetic hanger model ANC6. Use with our optional ATWB1 wet bulb thermocouple to help you find target superheat or with our pipe clamp T/Cs to check for blocked dryer filters.
Features:
- Two K-type thermocouples included
- Accepts any K-type thermocouple
- Resolution of 0.1 degree F
- Separate MIN/MAX and HOLD buttons
- Easy field calibration
Accuracy:
2C @ -50 to 0C
(0.3%rdg +1C) @ 0 to 600C
(0.5%rdg +1C) @ 600 to 1300C
Other specifications (good in ambient conditions (23C 5C), <75% relative humidity)
- Display: 3.5 digit LCD, 2000 count
- Over range: OL or -OL is displayed
- Range: -58 to 2000F (-50 to 1300C)
- Resolution: 0.1C
- Accuracy after field calibration: 1F at 30 to 120F, 6F at 0 to 50F
- Temperature coefficient: 0.1 x (specified accuracy) per C (0 to 18C, 28 to 50C)
- Measurement rate: 2.5 readings/second
- Battery type: 9V, NEDA 1604, JIS 006P, IEC 6F22
- Battery life: 200 hours typical alkaline
- Operating environment: 32F to 122F (0C to 50C) at <75% RH
- Storage temperature: -4F to 140F (-20C to 60C), 0 to 80% RH (with battery removed)
