Ultra Low Profile LCD Voltmeter - SP 400
Order Me In, Once ordered this item will likely dispatch before the 12th of March 2026, call 1300 737 871 (NZ 0800 737 871) to confirm.
- - Has a 200V DC full-scale range (FSR) with auto-zero and auto-polarity

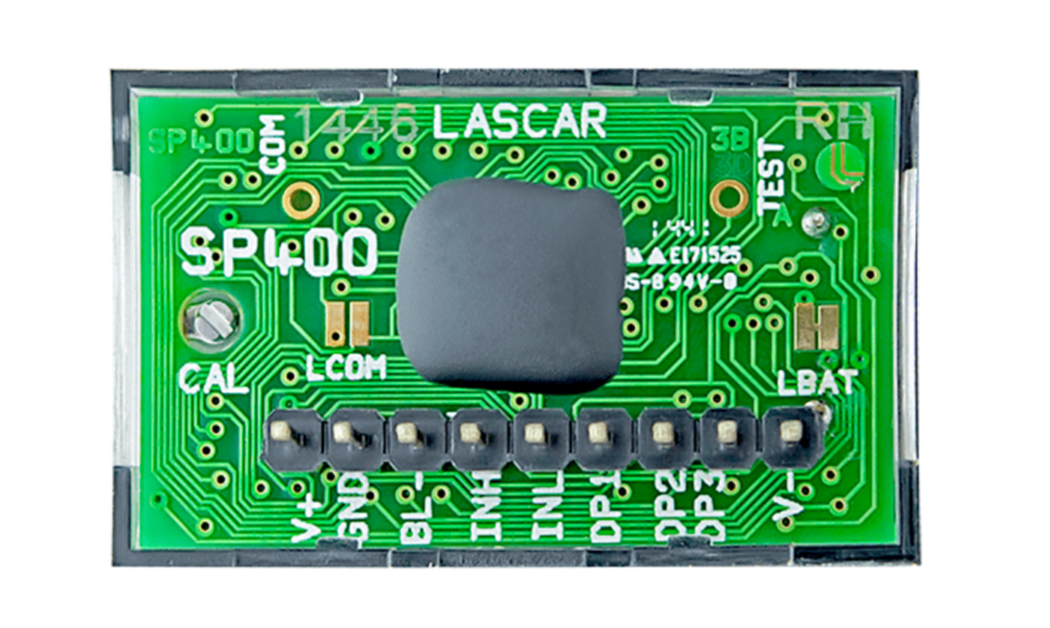

- - Plugs directly into a 9-way SIL socket and can be fitted into a panel via the fixing clip
- - Splashproof
$83.00 AUD Inc. GST

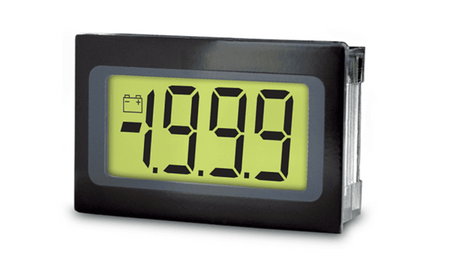

This ultra low profile panel meter features a 3½ digit LCD with 9.75mm (0.38″) digit height and green LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into a 9-way SIL socket and can be fitted into a panel via the fixing clip. Splash-proof protection is achieved by fitting the seal supplied. The SP 400 is a low cost, popular part, normally stocked in high quantity and suitable for new designs.
Specifications
- Accuracy (overall error): 0.1 % (±1 count)
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 2.5 samples/sec
- Supply Voltage (V+ to GND): 3 5 to 7.5 V d.c.
- Supply Voltage (V+ to V-): 6 to 15 V d.c.
- Supply Current (V+ to GND): 350 uA
- Supply Current (V+ to V-): 175 uA
