Noise levels at industrial workplaces are often high. Remembering to wear hearing protection and being able to document your noise levels are some of the issues our customers are happy to have a solution for.

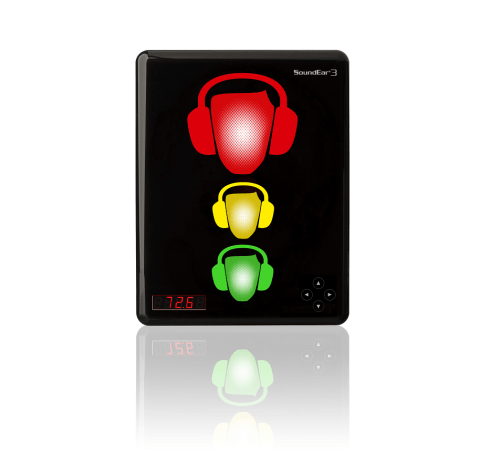

The main benefits of the SoundEAR 3 XL are:
- Visualizes noise in the workplace, making everyone aware of when they need to put on hearing protection
- Receiving automated noise reports, directly in your inbox is a matter of convenience. Sometimes it is just easier to have things served to you, rather than having to seek out the information in the software yourself.
- Ability to compare and analyze noise levels over time and across locations in the software is practical when you need to dig a little deeper into a specific noise situation.
- Monitoring noise levels from multiple locations at once in the software makes it easy to get an overview of the entire noise situation
- Receiving alarm emails when noise reaches a critical level allows you to be proactive and take care of matters instantly
Monitoring sound levels:
- Easy to monitor noise: you can use the software to monitor real-time noise levels from multiple sites or locations
- With precision noise measurements you are sure to have proper documentation for your noise levels
- Email alarms and automated noise reports means you are always up to date with the noise situation
The SoundEar 3 XL is used when you need to control noise at larger industrial workplace with more space and people. They are most often used in:
- Warehouses
- Production Plants
- Manufacturing Plants
- Food Processing
Specifications
- Parameters: Measures 3 measurements simultaneously. LAF; LAS; LCpeak; Laeq, 1s, Laeq h, Laeq 1/2h, Laeq 1 h.
- Resolution: 0.1 dB for all parameters
- Measuring Ranges: RMS: Total 30 to 120 dB
- Deviation: +/- 0.5 dB
- Frequency Range: 20Hz to 20 kHz
- Frequency Weightings: A- weighting (RMS), C-weighting (Peak)
- Time Weighting: Slow(1S) & Fast (125 ms)
- Dynamic Range: 90 dB and peak detection
- Light setting: full configurability through Soundear software including nightsetting.
- 2x outputs :0 to 10 V or 4 to 20 mA
- 2x USB outputs: Micro USB (power & PC) , USB OTG (Log, configuration)
- Display setting: LAS max, Leq (A)15, Alarm settings, Temperature & Clock
- Power Supply: 5VDC (Micro USB)/24VDC (Screw terminal)
- Current Consumption: max 2,5 W
- Internal memory: 16 MB (128 Mbit)(5-90 days log time, depending on log settings)
- Real Time Clock: Hi-precision type with battery backup (CR2032)
- Microphone: 20 Hz to 20 kHz
- Measurement: Length 595 mm, Width: 412 mm, Height: 59 mm
- Weight: 1.5 kg
Standards:
- IEC61672-2-2002, Type 2, ANSI 51,4 Type 260601-1: Medical electrical equipment- Part 1: general requirements for basic safety and essential performance
- 60601-1-2_ Medical equipment - Part 1.2: General requirement Part 1-2: General requirement for Basic safety and essential performance.
